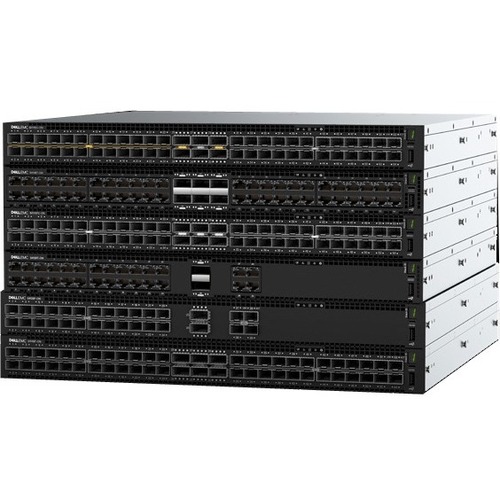

Dell EMC PowerSwitch S4128T-ON Ethernet Switch

The S4100-ON 10GbE switches comprise DellTechnologies’ latest disaggregated hardware and software data center networking solutions, providing state-of-the-art 100GbE uplinks, fibre channel connectivity and a broad range of functionality to meet the growing demands of today’s data center environment. These innovative, next-generation top-of-rack open networking switches offer optimum flexibility and cost-effectiveness for the enterprise, midmarket and tier 2 cloud service providers with demanding compute and storage traffic environments.

The compact S4100-ON models provide industry-leading density with up to 48 ports of 10GbE or up to 48 ports of 10GBaseT ports, 2 ports of 40GbE and 4 ports of 100GbE in a 1RU form factor. The S4148U-ON model can support up to 28 8/16G fibre channel ports, or 16 ports of 32G fibre channel ports. The S4112-ON is a half-rack width model that supports up to 12 ports of 10GbE or 12 ports 10GBaseT, and 3 ports of 100GbE.

Using industry-leading hardware and a choice of Dell EMC SmartFabric OS10 or select 3rd party network operating systems and tools, the S4100-ON Series offers flexibility by provision of configuration profiles and delivers non-blocking performance for workloads sensitive to packet loss. The compact S4100-ON models provide multirate speed, enabling denser footprints and simplifying migration to 100Gbps. Also unique to the S4100- ON series is the ability to meet the demands of converged and virtualized data centers

by offering unified ports (S4148U) and hardware support for L2 and L3 VXLAN Gateway. Priority-based flow control (PFC), data center bridge exchange (DCBX) and enhanced transmission selection (ETS) make the S4100-ON ideally suited for DCB environments. Dell EMC PowerSwitch S4100-ON switches support the open source Open Network Install Environment (ONIE) for zero touch installation of Dell EMC SmartFabric OS10 networking operating system, as well as of alternative network operating systems

Maximum performance and functionality

The S4100-ON series are high-performance, multifunction, 1/10/25/40/50/100 GbE and 8/16/32G FC top-of-rack (ToR) switches purpose-built for applications in high-performance data center, cloud and computing environments. Architectural features to optimize data center network flexibility, efficiency and availability include IO panel to PSU airflow or PSU to IO panel airflow for hot/cold aisle environments and redundant, hot-swappable power supplies and fans.

Key applications

• Organizations looking to enter the software-defined data center era with a choice of networking technologies designed to maximize flexibility
• Multi-functional 1/10/25/40/50/100 GbE switching in High Performance Computing Clusters or other business-sensitive deployments requiring the highest bandwidth. High-density 1/10 GbE ToR server access in high-performance data center environments
• iSCSI and FC storage deployment, including DCB converged lossless transactions
• Small-scale data center fabric implementation via the S4100-ON switch in leaf and spine along with S-Series 1/10GbE ToR switches
• VXLAN layer 2/layer 3 gateway support (available in hardware only)

Key features

• 1RU high-density 10/40/100 GbE ToR switches with up to 48 ports of 10 GbE (SFP+) or up to 48 ports of 10GBaseT ports, or up to 28 ports of 8/16 fibre channel, two ports of 40 GbE (QSFP+), and up to four ports of 100GbE (QSFP28) or four ports of 8/16/32G fibre channel

Product Type: Ethernet Switch
Interfaces/Ports
Total Number of Network Ports: 28
Uplink Port: Yes
Modular: Yes
Port/Expansion Slot Details:

• 28 x 10 Gigabit Ethernet Network
• 2 x 100 Gigabit Ethernet Expansion Slot

Media & Performance
Media Type Supported: Optical Fiber
Ethernet Technology:

• 10 Gigabit Ethernet
• 100 Gigabit Ethernet

Network Technology:

• 10GBase-X
• 100GBase-X

I/O Expansions
Number of Total Expansion Slots: 2
Expansion Slot Type: QSFP28
Network & Communication
Layer Supported: 3
Management & Protocols
Manageable: Yes
Power Description
Power Source: Power Supply
Redundant Power Supply Supported: Yes
Power Consumption: 300 W
Physical Characteristics
Compatible Rack Unit: 1U
Form Factor: Rack-mountable
Height: 1.8″
Width: 17″
Depth: 18″
Weight (Approximate): 20.67 lb
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification: EU RoHS
Warranty
Limited Warranty: 1 Year
