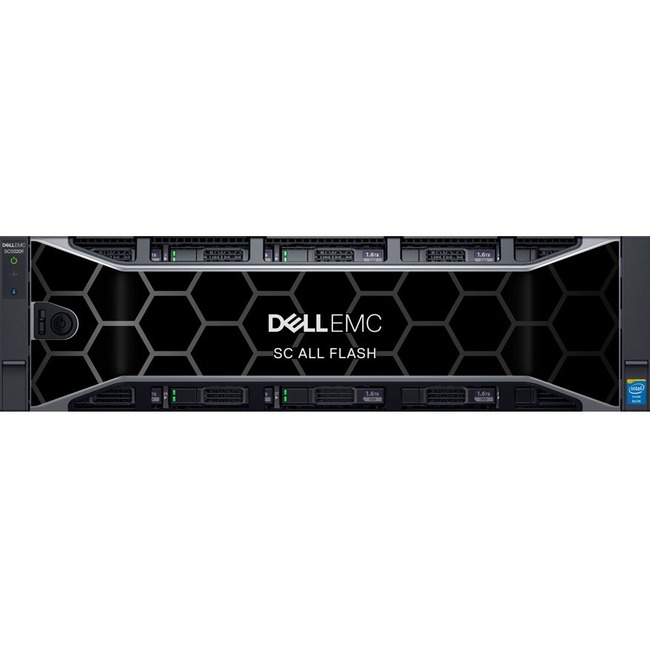

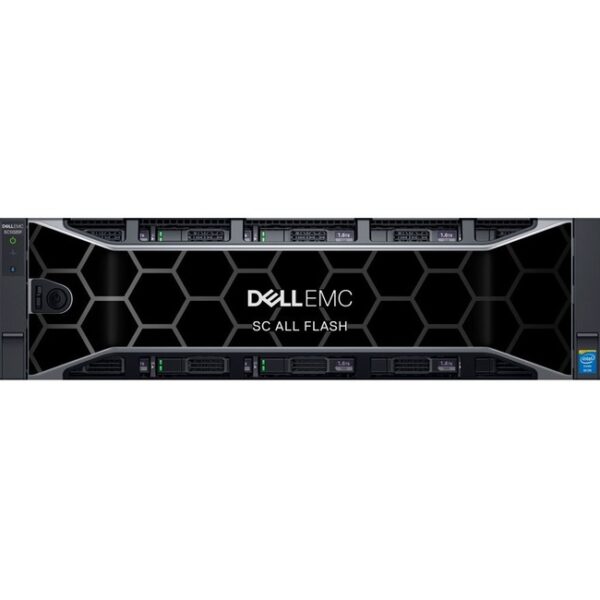

Dell EMC SC SAN Storage System

Welcome to a better flash architecture

Bring the power and speed of Dell EMC all-flash storage to bear on your toughest business challenges. Whether your goals include general-purpose workload consolidation, a new VDI deployment, high-volume OLTP systems or an all-flash private cloud, SC All-Flash storage delivers modern SSD performance with simplicity, flexibility and value. Why compromise with less complete solutions? These arrays have everything you need to get started with all-flash faster – and see all-flash results sooner.

Transformational performance

End-to-end flash helps you do things you thought were impossible, taking your business to new levels of productivity and success. Active/active, performance-centric design keeps IOPS high as you scale up and out, while ensuring every storage dollar spent is targeted directly on application acceleration.

Dynamic intelligence

Purpose-built to adapt to constant change and growth, SC All-Flash powers workloads even as environments evolve unpredictably. The days of saying “no” to business opportunity because of rigid storage infrastructures are over. You now have unprecedented flexibility to test new ideas and shift strategies on the fly.

Efficiency and value

Automate cost savings with innovative self-optimization features, including Intelligent Deduplication and Compression. Pervasive “thin methods” and intuitive management tools maximize resources – and best of all, every advanced SC software feature is enabled by default. No extra licenses to buy or maintain!

Federate the performance and capacity of up to 10 arrays

Built-in “storage hypervisor” lets you move workloads seamlessly between arrays, making storage changes without impacting hosts. The enterprise-proven SC Operating System automates and manages time-consuming, error-prone management tasks, including server/LUN mappings and RAID provisioning. Increase both deployment velocity and configuration agility to help your business compete in today’s volatile markets.

Easy migrations

Data mobility within a federation is fast and transparent to hosts. Need to move a volume to another array? Live Migrate makes it click-simple, keeping workloads online and preserving snapshot and replication relationships throughout the move.

Load balancing wizards

Included Volume Advisor even offers ongoing load balancing guidance, suggesting the best initial data locations, then alerting you with optimization recommendations as time goes by.

Always available storage

Included Live Volume also keeps workloads running during unexpected outages and disasters. Non-disruptive auto-failover between synchronized volumes on local and remote arrays protects your vital business operations.

Product Type: SAN Storage System
Storage
Number of Solid State Drive Supported: 30
Number of Solid State Drive Installed: 0
Processor & Chipset
Number of Processors Installed: 1
Processor Manufacturer: Intel
Processor Type: Xeon
Processor Model: E5-2630 v3
Processor Core: Octa-core (8 Core)
Processor Speed: 2.40 GHz
Memory
Standard Memory: 128 GB
I/O Expansions
Number of Total Expansion Bays: 30
Number of 2.5″ Bays: 30
Number of Total Expansion Slots: 2
Expansion Slot Type: PCI Express
Controllers
Number of Controllers: 1
RAID Supported: Yes
RAID Levels: 0, 1, 5, 6, 10
Interfaces/Ports
Fibre Channel: Yes
Software
Operating System: Storage Center 7.2
Management & Protocols
Protocols:

• iSCSI
• FCP

Power Description
Number of Power Supplies Installed: 2
Physical Characteristics
Height: 5.2″
Width: 17.5″
Depth: 30.9″
Form Factor: Rack-mountable
Rack Height: 3U
Weight (Approximate): 33.40 lb
