Manufacturer: Dell Technologies
Manufacturer Part Number: 338-BDYJ
Manufacturer Website Address: http://www.delltechnologies.com
Brand Name: Dell
Product Line: Xeon
Product Series: E5-2400 v2
Product Model: E5-2420 v2

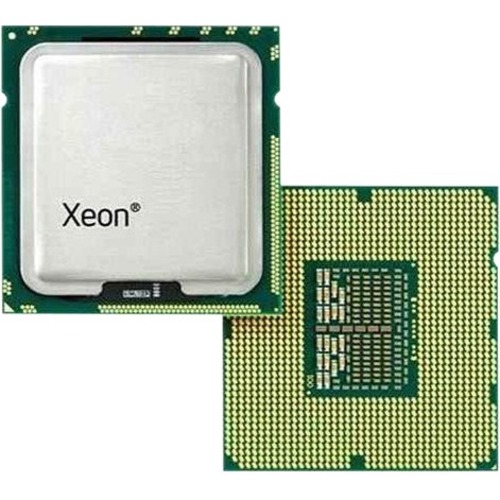

Product Name: Xeon E5-2420 v2 2.2 GHz Six Core Processor
Marketing Information: Intel® Xeon® Processor E5 Product Family
The heart of an agile, efficient data center that meets your diverse needs
High-Performance Solutions for Your Diverse Needs
Enterprise Private Cloud
Servers and storage solutions based on Intel® Xeon® processors deliver an unmatched combination of performance and built-in capabilities to support virtualized data centers and next-generation private clouds that are flexible, efficient, cost-effective, and built to scale.
Technical Computing
High-performance computing solutions based on Intel® Xeon® processors deliver dynamic scalability, greater performance, and faster time to discovery.
Big Data Analytics
The Intel® Xeon® processor family significantly reduces the processing time of large data sets, resulting in lower costs than previously possible.
Data Center Efficiency
Intel® Xeon® processors reduce server space, cooling costs, and energy usage. They are the efficient server solution.
Workstations
Intel® Xeon® processor-based workstations deliver the highest levels of performance and data integrity, providing the capability and capacity to improve innovation.
Features and Benefits
Performance Boost of up to 50 Percent
The Intel® Xeon® processor E5 v2 family can boost server performance by up to 50 percent over previous-generation Intel® Xeon® processor-based servers.
Reduce I/O Network Latency
Intel® Integrated I/O on the Intel® Xeon® processor E5 family accelerates data availability to the processing cores, reducing latency by up to 30 percent.
Increased Energy Efficiency
Intel® Xeon® processor E5 v2 family processors intelligently deliver up to 45 percent more performance per watt, increasing computing power while maintaining maximum energy efficiency.
Packaged Quantity: 1
Product Type: Processor Upgrade
Technical Information
Processor Manufacturer: Intel
Processor Core: Hexa-core (6 Core)
Clock Speed: 2.20 GHz
Overclocking Speed: 2.70 GHz
QuickPath Interconnect: 7.20 GT/s
Direct Media Interface: 5 GT/s
L2 Cache: 1.50 MB
L3 Cache: 15 MB
64-bit Processing: Yes
Process Technology: 22 nm
Processor Socket: Socket B2 LGA-1356
Power Description
Input Voltage: 1.3 V DC
Thermal Design Power: 80 W
Environmental Conditions
Thermal Specification: 168.8°F (76°C)
Physical Characteristics
Width: 1.8″
Depth: 1.7″
Miscellaneous
Compatibility:
- PowerEdge FC420
- PowerEdge M420
- PowerEdge M520
- PowerEdge R320
- PowerEdge R420
- PowerEdge R420XR
- PowerEdge R520
- PowerEdge T320
- PowerEdge T420
- PowerVault DX6104 SN
