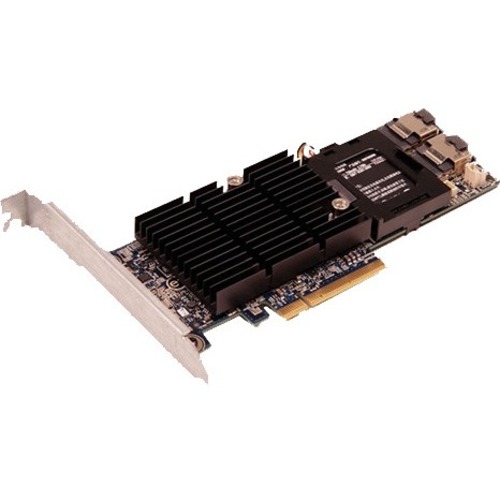

Dell PERC H710p – Storage Controller (RAID) – SATA 6Gb/s / SAS 6Gb/s – PCIe 2.0 x8

MFR#

405-12147

Low stock, check availability

Product Type: SAS Controller
Brand Name: Dell
Host Interface: PCI Express 2.0 x8
RAID Supported: Yes
RAID Levels: 60
Request Pricing
?

B2B Pricing

Shop with confidence knowing that you have a dedicated B2B account team ready to answer any technical or sales questions.

  • Exclusive business pricing
  • Custom quotes
  • Responsive technical support
  • Pre-sales and after-sales support
Request a Quote
Add to quote cart

Ask a Product Specialist

Looking for something else or have a question about this product?
Call 470-361-1180|Email
Get a Quote
Overview
General Information
Manufacturer: Dell Technologies
Manufacturer Part Number: 405-12147
Manufacturer Website Address: http://www.delltechnologies.com
Brand Name: Dell
Product Series: PERC
Product Model: H710p
Product Name: PERC H710p – Storage Controller (RAID) – SATA 6Gb/s / SAS 6Gb/s – PCIe 2.0 x8
Marketing Information:

The PERC H710 a mid-range Internal RAID solution based on LSI’s Thunderbolt (2208) ROC from Dell, which offers dual PPC 600 MHz cores (without fast path support), along with 6 Gb/s SAS. The PERC H710 adapter comes with 1 GB of integrated 1333 MHz DDR3 cache for quick storage. This PCIe 2.0 based card supports PowerEdge internal storage. The PERC H710 operates on PERC 8.0 FW stack and supports RAID levels 0/1/10/5/50/6/60.

Product Type: SAS Controller
Technical Information
Host Interface: PCI Express 2.0 x8
Controller Type: 6Gb/s SAS
RAID Supported: Yes
RAID Levels:

  • 0
  • 1
  • 5
  • 6
  • 10
  • 50
  • 60

Data Backup Type: NV Cache
Memory
Cache Memory: 1 GB
Interfaces/Ports
Total Number of SAS Ports: 8
Number of SAS Ports (Internal): 8
SAS Connector Details: 2 x SFF-8088

Specifications
Product Type

SAS Controller
Brand Name

Dell
Host Interface

PCI Express 2.0 x8
RAID Supported

Yes
RAID Levels

60
Controller Type

6Gb/s SAS
Total Number of SAS Ports

8
Data Backup Type

NV Cache
