Manufacturer: Dell Technologies
Manufacturer Part Number: 405-AAER
Manufacturer Website Address: http://www.delltechnologies.com
Brand Name: Dell
Product Series: PERC
Product Model: H830

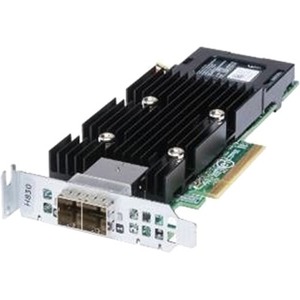

Product Name: PERC H830 SAS Controller
Marketing Information:
Highlights
- Enterprise data protection
- Sophisticated DAS topologies
- Unsurpassed performance and high reliability
Overview
The Dell PERC (PowerEdge RAID Controller) family of enterprise-class controllers is designed for enhanced performance, increased reliability and fault tolerance, and simplified management – providing a powerful, easy-to-manage way to create a robust infrastructure and help maximize server uptime.
As storage demands expand and processing loads grow, it becomes increasingly more difficult for administrators to achieve maximum performance from their applications. The line of Dell PowerEdge RAID Controller (PERC) cards offer unmatched I/O performance for database applications, streaming digital media environments and storage intensive applications.
Product Type: SAS Controller
Technical Information
Host Interface: PCI Express 3.0 x8
Controller Type: 12Gb/s SAS
RAID Supported: Yes
RAID Levels:
- 0
- 1
- 5
- 6
- 10
- 50
- 60
- JBOD
Data Backup Type: NV Cache
Memory
Cache Memory: 2 GB
Interfaces/Ports
Total Number of SAS Ports: 8
Physical Characteristics
Form Factor: Plug-in Card
Height: 2.5″
Depth: 6.6″
Miscellaneous
Platform Supported:
- Linux
- PC
