Manufacturer: Dell Technologies
Manufacturer Part Number: PC6224
Manufacturer Website Address: http://www.delltechnologies.com
Brand Name: Dell
Product Line: PowerConnect
Product Series: 6200
Product Model: 6224

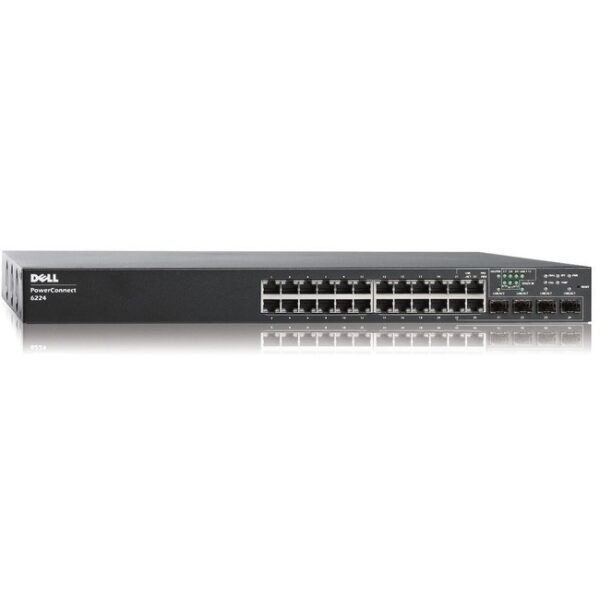

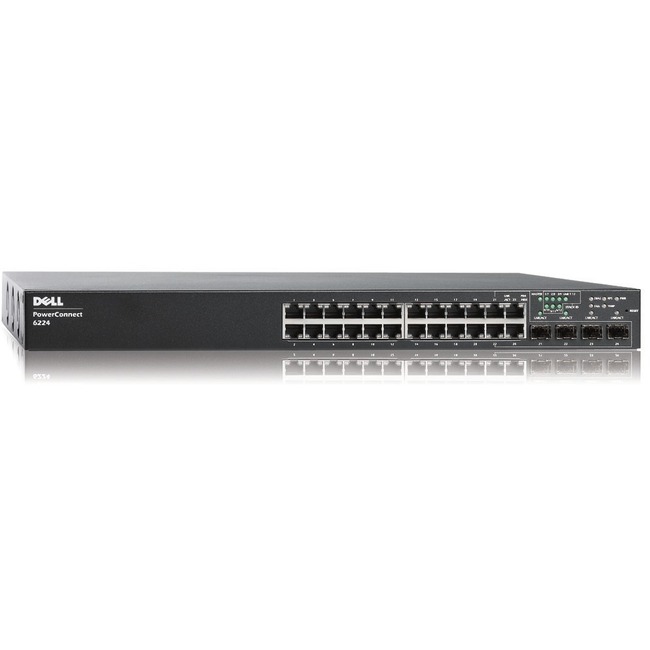

Product Name: PowerConnect 6224 Layer 3 Switch
Marketing Information: Give your network a boost
Support wire-speed performance and help provide fast access to data locally and across networks with Dell Networking 6200 series gigabit Ethernet (GbE) switches.
- Support up to 4GbE connections per switch and up to 576 connections per stack of 12 systems.
- Help provide fast 10GbE connectivity directly to servers, routers, enterprise backbones and data centers with up to four 10Gb fiber (SFP+) ports and up to two 10GBase-T copper Ethernet uplinks.
- Connect at up to 10 times the speed of 10/100 networks, and help get the most out of your PC and server performance by matching your NIC speeds.
Product Type: Layer 3 Switch
Interfaces/Ports
Total Number of Network Ports: 24
Uplink Port: No
Modular: No
Stack Port: No
Port/Expansion Slot Details:
- 24 x Gigabit Ethernet Network
- 4 x Gigabit Ethernet Expansion Slot
Media & Performance
Media Type Supported: Twisted Pair
Ethernet Technology: Gigabit Ethernet
Network Technology: 10/100/1000Base-T
I/O Expansions
Number of Total Expansion Slots: 4
Expansion Slot Type: SFP
Shared SFP Slot: Yes
Number of SFP Slots: 4
Network & Communication
Layer Supported: 3
Management & Protocols
Manageable: Yes
Power Description
PoE (RJ-45) Port: No
Power Source: Power Supply
Physical Characteristics
Compatible Rack Unit: 1U
Form Factor: Rack-mountable
Height: 1.7″
Width: 17.3″
Depth: 15.2″
Weight (Approximate): 12.57 lb
Miscellaneous
Package Contents:
- PowerConnect 6224 Layer 3 Switch
- Rack Mounting Kit
Environmentally Friendly: Yes
Environmental Certification:
- EU WEEE
- EU RoHS
Warranty
Limited Warranty: Lifetime
