Manufacturer: Dell Technologies
Manufacturer Part Number: 180AS
Manufacturer Website Address: http://www.delltechnologies.com
Brand Name: Dell
Product Line: PowerEdge
Product Model: 180AS

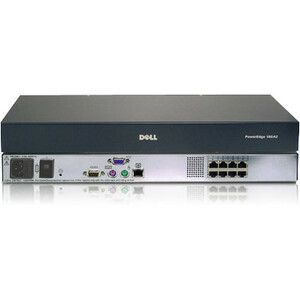

Product Name: PowerEdge 180AS Console Switch
Marketing Information: Connectivity, flexibility and scalability
The Dell™ PowerEdge™ 180AS console switch allows administrators to easily monitor and control multiple servers locally or remotely, featuring:
- Eight ports
- Control up to 64 servers over a single connection
- Efficient design that enables 0U mounting in a Dell rack
Highlighted Features
The console switches come with a choice of two Server Interface Pods (SIPs) – PS/2 or USB – to fit a variety of server needs. A SIP replaces a bulky KVM (keyboard, video, mouse) cable by converting the keyboard, monitor and mouse signals from a server and driving them up to 15 meters (50 feet) through a single Category 5 (CAT 5) cable. The SIP cable draws its power from the server and has a Keep Alive functionality that is designed to keep the server working properly with or without connectivity to the unit.
The switches enable cross-platform management using the On-Screen Configuration and Activity Reporting (OSCAR®) interface. With the OSCAR interface, administrators can easily configure the switch system and select the different servers. Computers can be identified by unique name, electronic ID (EID) or port number, allowing users to assign unique server names.
An optional accessory to these units is the Dell Port Expansion Module (PEM), which is a passive device that can be mounted next to the railing of the rack. A PEM connects to one system port on the switch and then eight servers. With a PEM connected to each of the eight ports on the 180AS, the total system capacity of a 180AS expands to 64 total servers.
Product Type: KVM Switchbox
Technical Information
KVM Technology: Digital
Number of Computers Supported: 64
Number of Local Users Supported: 1
Number of Remote Users Supported: 2
Video
Maximum Video Resolution: 1600 x 1280
Interfaces/Ports
Network (RJ-45): Yes
VGA: Yes
Number of Network (RJ-45) Ports: 8
Number of VGA Ports: 1
Physical Characteristics
Form Factor: Rack-mountable
Rack Height: 0U
Width: 16.9″
Depth: 6.5″
Weight (Approximate): 8 lb
