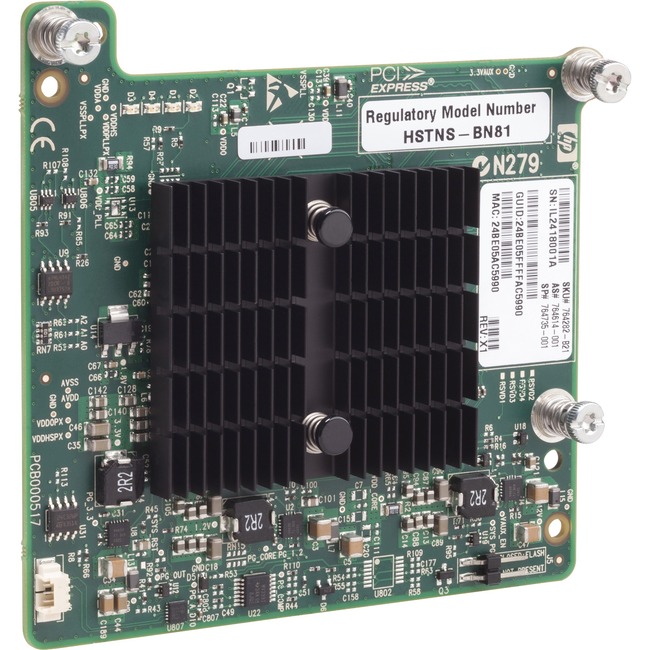

HPE InfiniBand FDR/Ethernet 10Gb/40Gb 2-port 544+FLR-QSFP Adapter

Are you looking for an dual-function FDR InfiniBand and/or 40/50 GbE adapter for your HPE ProLiant XL and DL server families? The HPE InfiniBand FDR/EN Adapters are designed for customers who need low latency and high-bandwidth for high-performance computing (HPC) systems with their HPE ProLiant XL and DL server families in the data center. Based on Mellanox® ConnectX-3 PRO, Connect-IB and ConnectX-5 technology for scalability and fabric flexibility, the dual ported card can function as a dual-port FDR InfiniBand card, a dual-port Ethernet card, or a mixed function card. Combined with HPE FDR InfiniBand Switches or Ethernet Switches, they deliver low latency and up to 50 Gb/s bandwidth. Ideal for performance-driven server and storage clustering applications in HPC and enterprise data centers.

What’s new

• Mellanox ConnectX-5 technology for Up to 50GbE and Higher Message Rate.

Features

Dual-function FDR InfiniBand and 40/50 Gb Ethernet adapter for HPE ProLiant XL and DL Servers

The HPE InfiniBand FDR/EN 2-Port Adapters deliver up to 50 Gbps bandwidth and a sub-microsecond low latency for demanding, high performance computing (HPC) workloads.

The adapter includes offload engines that speeds communications by delivering a low CPU overhead for increasing throughput.

It provides the support of remote direct memory access (RDMA) over Converged Ethernet (RoCE) technology that enables efficient low-latency RDMA services over Layer 2 and Layer 3 networks.

Product Type: 40Gigabit Ethernet Card
Interfaces/Ports
Host Interface: PCI Express 3.0 x8
Total Number of Ports: 2
I/O Expansions
Expansion Slot Type: QSFP
Media & Performance
Media Type Supported: Optical Fiber
Network & Communication
Network Technology: 40GBase-X
Physical Characteristics
Form Factor: FlexibleLOM
Miscellaneous
Device Supported: Server
TAA Compliant: Yes
