Manufacturer: IBM Corporation
Manufacturer Part Number: 08K0372
Manufacturer Website Address: http://www.ibm.com
Brand Name: IBM

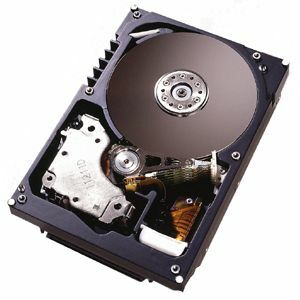

Product Name: Ultrastar 146 Z10 Hard Drive
Marketing Information: Introducing the sixth generation of IBM Ultrastar 10,000 rpm disk drives. The IBM Ultrastar 146 Z10 drive family offers high quality and superior performance. These drives feature more powerful processors and read/write channels to excel in server-class environments.
To achieve maximum I/O performance, the drives combine fast seek times, large 8 MB multi-segmented buffers, a sophisticated command queuing algorithm, hardware automation, and superior data rates (825 Mbps). Ultrastar 146 Z10 drives include new servo technology (Rotational Vibration Safeguard “RVS”), employed to counteract the effects of rotational vibration that commonly occur in multi-drive cabinets. They also employ fifth generation giant magnetoresistive (GMR) head technology to double areal density from previous generation drives (26.3Gbits/sq. in.) and boost performance. In addition, highly efficient No-ID sector formatting enables more data to be stored per disk.
Packaged Quantity: 1
Package Type: OEM
Product Type: Hard Drive
Technical Information
Storage Capacity: 73.40 GB
Drive Performance
Spindle Speed (rpm): 10000
Buffer: 8 MB
Interfaces/Ports
Drive Interface: SCSI
Drive Interface Standard: Ultra320 SCSI
Physical Characteristics
Drive Type: Internal
Form Factor: 3.5″
Height: 1″
Width: 3″
Depth: 5.7″
Weight (Approximate): 1.71 lb
Miscellaneous
Compatibility:
- PC
Warranty
Limited Warranty: 5 Year
