Manufacturer: IBM Corporation
Manufacturer Part Number: 883735U
Manufacturer Website Address: http://www.ibm.com
Brand Name: IBM
Product Line: eServer
Product Series: xSeries 336

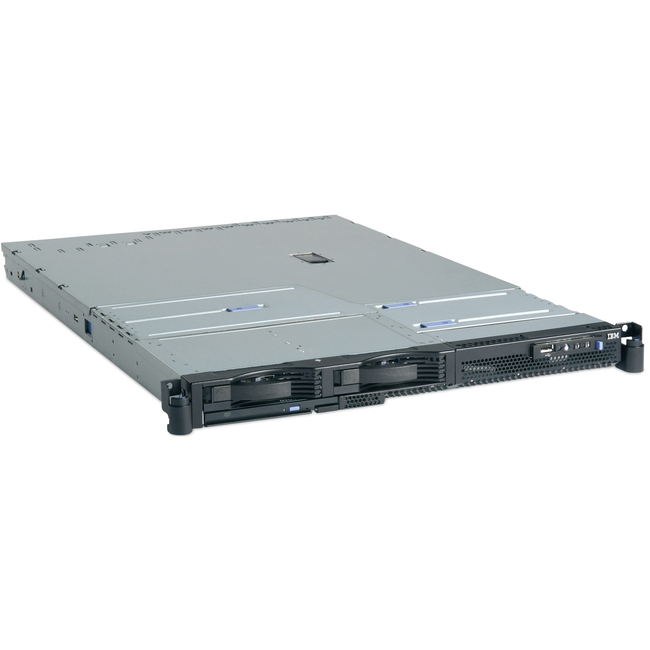

Product Name: eServer xSeries 336 Server
Marketing Information:
The IBM eServer xSeries 336 Server offers superb performance for demanding Web and collaborative applications. New support for 64-bit extensions through Intel EM64T helps protect server investments by supporting both 32-bit and 64-bit applications. EM64T provides outstanding performance by allowing operating systems and applications to physically address more memory. To take advantage of this, the eServer xSeries 336 Server supports eight DIMM slots for a maximum of 16GB of DDR2 memory.
Product Type: Server
Processor
Number of Processors Supported: 2
Number of Processors Installed: 1
Processor Manufacturer: Intel
Processor Type: Xeon
Processor Speed: 3.40 GHz
Cache: 2 MB
Memory
Standard Memory: 1 GB
Maximum Memory Supported: 16 GB
Memory Technology: DDR2 SDRAM
Number of Total Memory Slots: 8
Error Checking: ECC
Signal Processing: Registered (Buffered)
Storage
Optical Drive Type: DVD-Reader
Controllers
Controller Type: Ultra320 SCSI
RAID Supported: Yes
RAID Levels: 1, 1E
Display & Graphics
Graphics Controller Manufacturer: ATI
Graphics Controller Model: Radeon 7000-M
Graphics Memory Capacity: 16 MB
Graphics Memory Technology: DDR SDRAM
Network & Communication
Ethernet Technology: Gigabit Ethernet
Interfaces/Ports
Total Number of USB Ports: 3
Number of USB 2.0 Ports: 3
Network (RJ-45): Yes
Power Description
Number of Power Supplies Installed: 1
Maximum Power Supply Wattage: 585 W
Miscellaneous
Security Features:
- Power-on password
- Privileged access password
- Selectable boot
- Unattended start-up
Physical Characteristics
Form Factor: Rack
Height: 1.7″
Width: 17.3″
Depth: 27″
Weight (Approximate): 28.40 lb
Warranty
Limited Warranty: 3 Year
Additional Warranty Information:
- Type of service: 3 Years Onsite Repair
