Manufacturer: IBM Corporation
Manufacturer Part Number: 81Y6709
Manufacturer Website Address: http://www.ibm.com
Brand Name: IBM
Product Line: Xeon
Product Series: 5600
Product Model: X5650

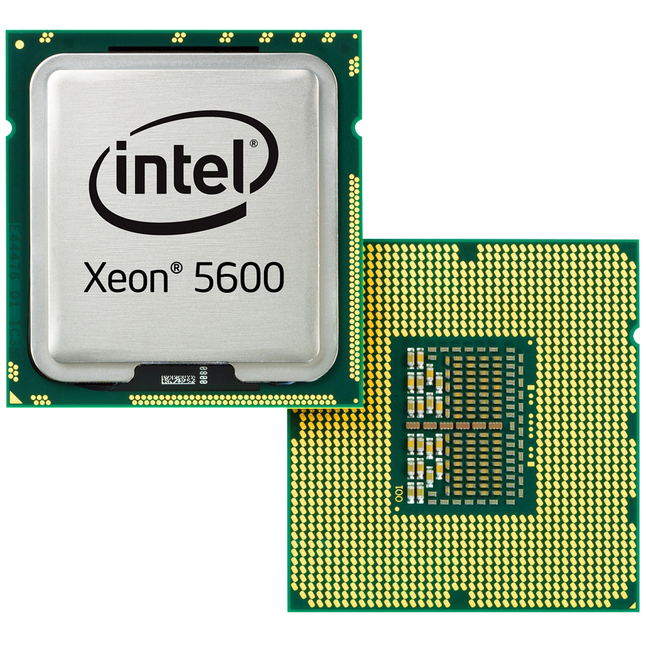

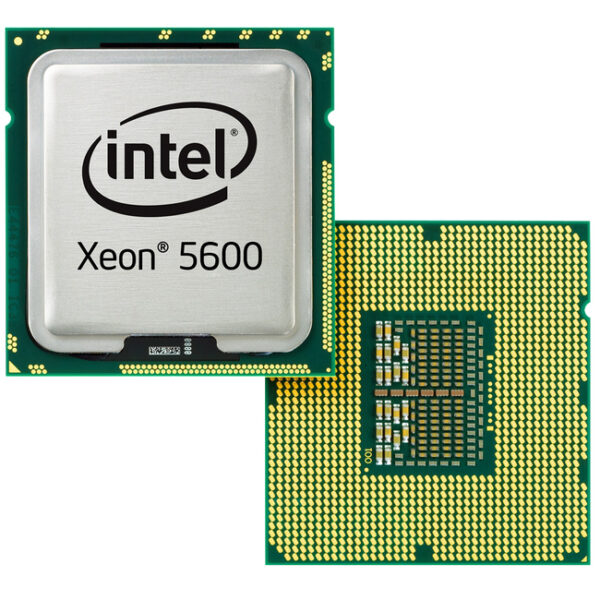

Product Name: Xeon Hexa-core X5650 2.66GHz Processor Upgrade
Marketing Information:
The Intel® Xeon® processor 5600 series automatically regulates power consumption and intelligently adjusts server performance according to application demand, maximizing both energy cost savings and performance. Based on new 32nm Intel® microarchitecture, the Intel Xeon processor 5600 series reduces energy cost over single-core servers by automatically shifting the CPU and memory into the lowest available power state, while intelligently adjusting performance to application needs.
In addition, built-in hardware-assisted virtualization technology gives you the power and flexibility to virtualize different generations of Intel® Xeon® processor-based servers within the same virtualization pool, giving you the ability to migrate workloads to fewer servers at night to save energy.
Product Type: Processor Upgrade
Technical Information
Processor Manufacturer: Intel
Processor Core: Hexa-core (6 Core)
Clock Speed: 2.66 GHz
QuickPath Interconnect: 6.40 GT/s
L2 Cache: 1.50 MB
L3 Cache: 12 MB
64-bit Processing: Yes
Process Technology: 32 nm
Processor Socket: Socket B LGA-1366
Power Description
Input Voltage: 1.4 V DC
Thermal Design Power: 95 W
Environmental Conditions
Thermal Specification: 178.3°F (81.3°C)
Physical Characteristics
Width: 1.7″
Depth: 1.8″
Miscellaneous
Compatibility:
- IBM x3620 M3 (7376) System Server
- Intel S5520UR Server Board
- Intel S5520HC Server Board
- Intel S5520SC Workstation Board
- Intel S5500BC Server Board
- Intel S5500WB Server Board
- Intel S5500HCV Server Board
- Intel S5500HV Server Board
- Intel S5500WB12V Server Board
- Intel MFS5520VIR Compute Module
- Intel S5520HCT Server Board
- Intel S5520URT Server Board
- Intel SR2612UR Server System
- Intel SR1670HV Server System
- Intel SR1680MV Server System
- Intel SC5650SCWS Workstation System
- Intel SR1630BCR Server System
- Intel SC5650BCDPR Server System
- Intel SC5650HCBRPR Server System
- Intel SR2625URLXR Server System
- Intel SR2625URLXT Server System
- Intel SR2625URBRPR Server System
- Intel SR1600URR Server System
- Intel SR1600URHSR Server System
- Intel SR1625URR Server System
- Intel SR1625URSASR Server System
- Intel SR2600URBRPR Server System
- Intel SR2600URLXR Server System
- Intel SR2612URR Server System
- Intel SR1695WBAC Server System
- Intel SR1695WBDC Server System
- Intel SR1690WBR Server System
