Overview
General Information
Manufacturer: Juniper Networks, Inc
Manufacturer Part Number: NS-500ES-GB2-AC
Manufacturer Website Address: http://www.juniper.net
Brand Name: Juniper
Product Series: 500

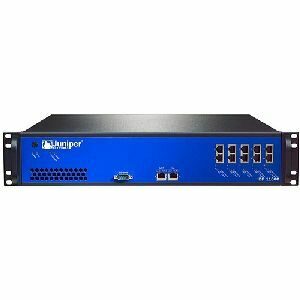

Product Name: 500 Firewall
Marketing Information: The NetScreen-500 is a purpose-built, high performance security system designed to provide a flexible, high performance solution to medium and large enterprise central sites and service providers. The NetScreen-500 security system integrates firewall, VPN, and traffic management functionality in a low-profile, modular chassis. The NetScreen-500 is built around NetScreen’s custom, purpose-built GigaScreen ASIC, which provides accelerated encryption algorithms and policy look ups. In addition, there are two high speed busses to off-load management traffic from application traffic processing. This prevents High Availability and other management traffic from impacting throughput performance.
Product Type: Network Security/Firewall Appliance
Technical Information
Firewall Protection Supported:
Manufacturer: Juniper Networks, Inc
Manufacturer Part Number: NS-500ES-GB2-AC
Manufacturer Website Address: http://www.juniper.net
Brand Name: Juniper
Product Series: 500
Product Name: 500 Firewall
Marketing Information: The NetScreen-500 is a purpose-built, high performance security system designed to provide a flexible, high performance solution to medium and large enterprise central sites and service providers. The NetScreen-500 security system integrates firewall, VPN, and traffic management functionality in a low-profile, modular chassis. The NetScreen-500 is built around NetScreen’s custom, purpose-built GigaScreen ASIC, which provides accelerated encryption algorithms and policy look ups. In addition, there are two high speed busses to off-load management traffic from application traffic processing. This prevents High Availability and other management traffic from impacting throughput performance.
Product Type: Network Security/Firewall Appliance
Technical Information
Firewall Protection Supported:
- Denial of Service (DoS)
- Stateful Packet Inspection
Interfaces/Ports
Total Number of Ports: 6
Number of Network (RJ-45) Ports: 2
Network & Communication
Ethernet Technology: Fast Ethernet
Network Standard:
- 10/100Base-TX
- 1000Base-SX
I/O Expansions
Number of Total Expansion Slots: 9
Physical Characteristics
Compatible Rack Unit: 2U
Form Factor: Rack-mountable
Height: 3.5″
Width: 17.5″
Depth: 17″
Weight (Approximate): 27 lb
Warranty
Limited Warranty: 1 Year
Additional Warranty Information:
- Every NetScreen product includes standard warranty features that assure the customer can deploy them confidently.
- Hardware products come with a full year of standard RMA coverage in the unlikely event of failure. Both hardware and software products come with a short-term software service that provides any software feature releases or maintenance releases within 90 days of purchase.
