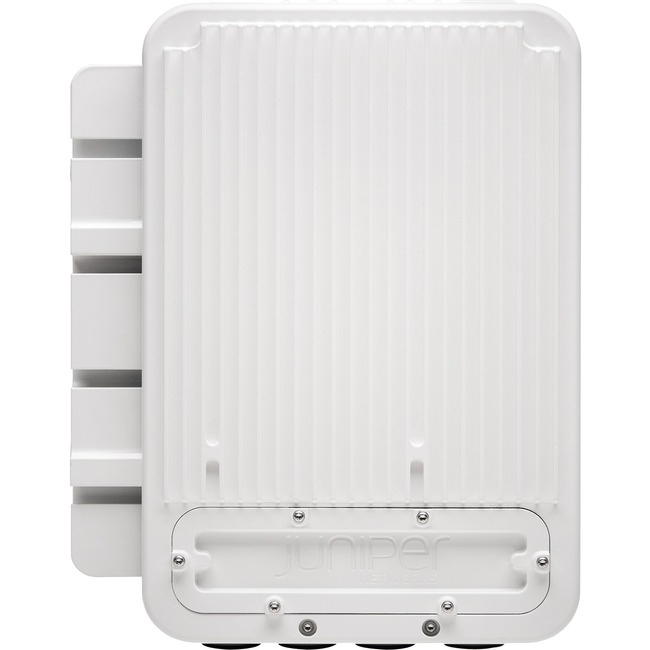

Juniper ACX500-O-POE Router

ACX500 fanless mobile backhaul routers, certified for indoor and outdoor use in utilities and railways, deliver up to 6 Gbps throughput and support an integrated, software-enabled GPS receiver. With a raft of targeted security and management capabilities, the ACX500 is ideally suited for small-cell applications.

Overview

A 1 U fanless mobile backhaul router, the ACX500 comes with integrated GPS support and delivers 6 Gbps of throughput via fixed configuration Ethernet interfaces. Three compact form factors are available to meet your specific mobile backhaul needs:

• ACX500 for indoor deployment
• ACX500-O and ACX500-O-PoE for outdoor deployment

The temperature-hardened ACX500 indoor model provides four copper 10/100/1000 Mbps ports and two fiber 1 Gbps ports, while the environmentally hardened ACX500-O and ACX500-O-PoE outdoor models provide three copper ports and three fiber ports. Both the ACX500 and the ACX500-O-PoE support Class 3 Power over Ethernet (PoE), with a power budget of 80W.

All models are fanless and support AC or DC power sources, so you can easily deploy them in Telco environments where rack space and cooling are limited.

The ACX500 is fully customizable using the Junos SDK. The ACX500 platform’s scalability and reliability improves your customers’ overall quality of experience while lowering your costs for deploying, maintaining and updating the network infrastructure.

Product Type: Router
Interfaces/Ports
Total Number of Ports: 3
I/O Expansions
Number of Total Expansion Slots: 3
Network & Communication
Ethernet Technology: Gigabit Ethernet
Network Technology:

• 1000Base-X
• 1000Base-T

Power Description
Redundant Power Supply Supported: No
Physical Characteristics
Form Factor:

• Pole Mount
• Wall Mountable

Height: 4.7″
Width: 16″
Depth: 10″
Weight (Approximate): 13.66 lb
