Manufacturer: Juniper Networks, Inc
Manufacturer Part Number: EX4200-24T-DC
Manufacturer Website Address: http://www.juniper.net
Brand Name: Juniper
Product Series: EX 4200
Product Model: EX 4200-24T-DC

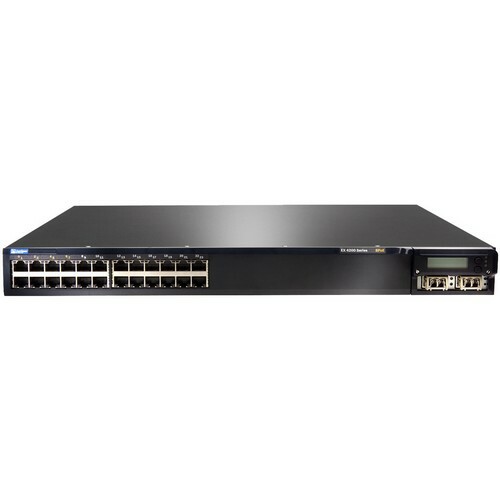

Product Name: EX 4200-24T-DC Ethernet Switch
Marketing Information:
The EX 4200-24T-DC Ethernet switch with Virtual Chassis technology combine the High Availability (HA) and carrier-class reliability of modular systems with the economics and flexibility of stackable platforms, delivering a high-performance, scalable solution for data center, campus and branch office environments. Offering a full suite of Layer 2 and Layer 3 switching capabilities as part of the base software, the EX 4200-24T-DC switch satisfy a variety of high-performance applications, including branch, campus and data center access deployments as well as Gigabit Ethernet (GbE) aggregation deployments. A single 24-port switch can be deployed initially; as requirements grow, Juniper Networks Virtual Chassis technology allows up to 10 EX 4200 series switches to be interconnected over a 128 gigabit-per-second (Gbps) backplane and managed as a single device, delivering a scalable, pay-as-you-grow solution for expanding network environments. Flexible Gigabit Ethernet (GbE) and 10-Gigabit Ethernet (10 GbE) uplink options enable high-speed connectivity to aggregation- or core-layer switches which connect multiple floorsor buildings.
Product Type: Ethernet Switch
Interfaces/Ports
Total Number of Network Ports: 24
Port/Expansion Slot Details:
- 24 x Gigabit Ethernet Network
- 4 x Gigabit Ethernet Expansion Slot
Media & Performance
Ethernet Technology: Gigabit Ethernet
Network Technology: 10/100/1000Base-T
I/O Expansions
Number of Total Expansion Slots: 4
Expansion Slot Type: SFP
Number of SFP Slots: 4
Network & Communication
Layer Supported: 3
Management & Protocols
Manageable: Yes
Power Description
Power Source: Power Supply
Redundant Power Supply Supported: Yes
Physical Characteristics
Compatible Rack Unit: 1U
Form Factor: Rack-mountable
Height: 1.7″
Width: 17.4″
Depth: 16.4″
Weight (Approximate): 16.50 lb
Miscellaneous
Package Contents:
- EX 4200-24T-DC Ethernet Switch
- 190 W DC PSU
- 50cm Virtual Chassis cable
Environmentally Friendly: Yes
Environmental Certification: RoHS-5
Warranty
Limited Warranty: 1 Year
