Manufacturer: Juniper Networks, Inc
Manufacturer Part Number: EX2300-C-12P
Manufacturer Website Address: http://www.juniper.net
Brand Name: Juniper
Product Series: EX2300-C
Product Model: EX2300-C-12P

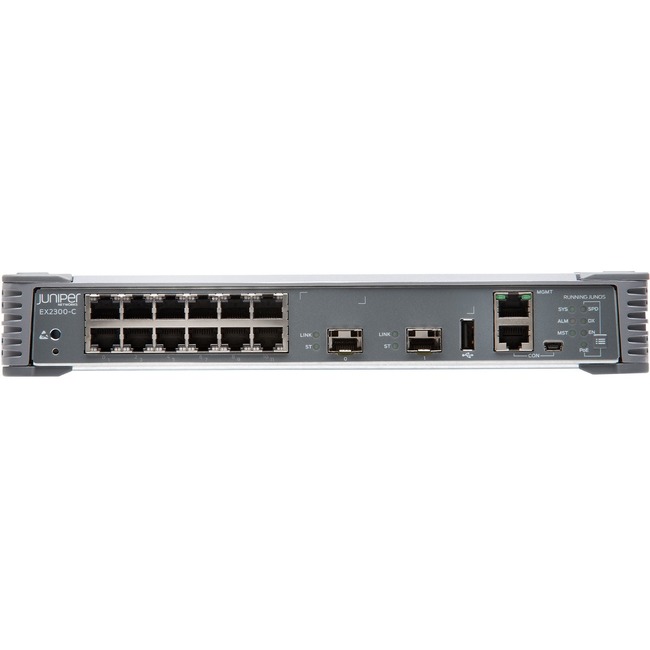

Product Name: EX2300-C Compact Ethernet Switch
Marketing Information:
EX2300 and EX2300-C Ethernet Switches deliver a compact, high-density, cost-effective solution for small network environments where space and power are at a premium. Featuring a small, 1U footprint, the EX2300 and EX2300-C are ideal for access-layer deployments in micro branches, retail and workgroup environments, and converged network access in larger networks.
The EX2300 offers 24 10/100/1000BASE-T ports in a single platform, while the EX2300-C offers 12 10/100/1000BASE-T ports. Both models are available with or without IEEE 802.3af Power over Ethernet (PoE) or 802.3at PoE+ for powering attached network devices. Optional front panel 10GbE uplink ports support connections to higher-layer devices.
Both models support Juniper’s unique Virtual Chassis technology, enabling up to four of the switches to be interconnected and managed as a single device. Both models can also act as satellite devices in a Juniper Junos Fusion Enterprise deployment, which combines large numbers of access switches into a logical management platform.
Product Type: Layer 3 Switch
Interfaces/Ports
Total Number of Network Ports: 12
Uplink Port: Yes
Modular: Yes
Stack Port: No
Port/Expansion Slot Details:
- 12 x Gigabit Ethernet Network
- 2 x 10 Gigabit Ethernet Expansion Slot
Media & Performance
Media Type Supported:
- Twisted Pair
- Optical Fiber
Ethernet Technology:
- Gigabit Ethernet
- 10 Gigabit Ethernet
Network Technology:
- 10/100/1000Base-T
- 10GBase-X
I/O Expansions
Number of Total Expansion Slots: 2
Expansion Slot Type: SFP+
Shared SFP Slot: No
Number of SFP+ Slots: 2
Network & Communication
Layer Supported: 3
Management & Protocols
Manageable: Yes
Power Description
Power Source: Power Supply
Redundant Power Supply Supported: No
Physical Characteristics
Compatible Rack Unit: 1U
Form Factor:
- Rack-mountable
- Magnetic Mount
- Wall Mountable
Height: 1.7″
Width: 11″
Depth: 9.4″
Weight (Approximate): 6.99 lb
Miscellaneous
Environmentally Friendly: Yes
Warranty
Limited Warranty: Lifetime
