Manufacturer: Juniper Networks, Inc
Manufacturer Part Number: EX3400-48T-AFI
Manufacturer Website Address: http://www.juniper.net
Brand Name: Juniper
Product Series: EX3400
Product Model: EX3400-48T

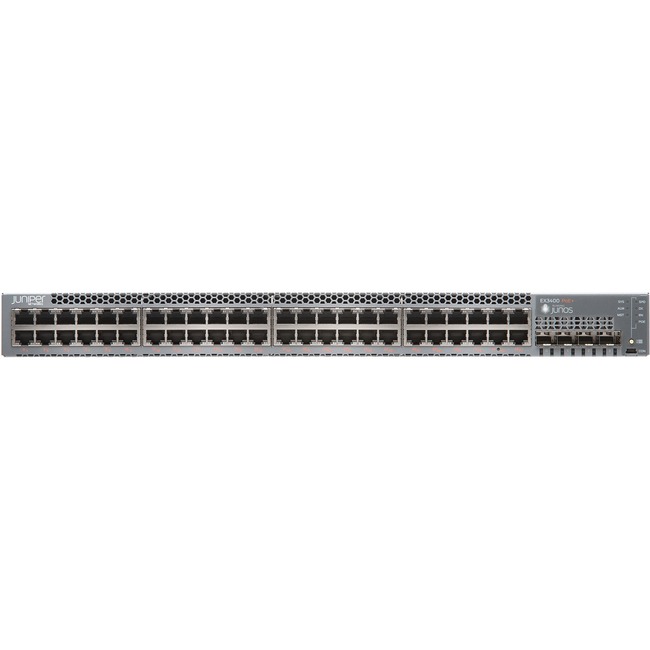

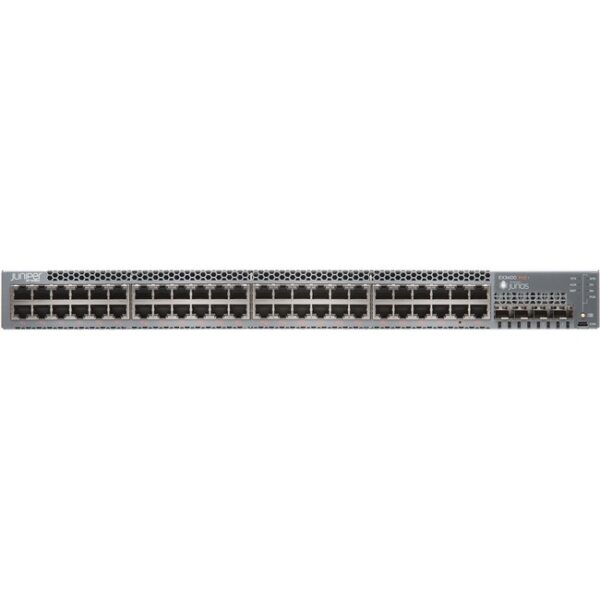

Product Name: EX3400-48T Layer 3 Switch
Marketing Information: Juniper Networks EX3400 Ethernet Switch delivers a high-performance, flexible, and cost-effective solution for today’s most demanding converged data, voice, and video enterprise access environments.
To simplify network operations, the EX3400 is hardware-ready to act as a satellite device to Fusion Enterprise deployment, which can combine several wiring closets into one logical management platform. The EX3400 also supports Juniper Networks Virtual Chassis technology, allowing up to 10 switches to be interconnected over uplink ports and managed as a single device, delivering a scalable, pay-as-you-grow solution for expanding network environments.
Product Type: Layer 3 Switch
Interfaces/Ports
Total Number of Network Ports: 48
Uplink Port: Yes
Modular: Yes
Stack Port: Yes
Port/Expansion Slot Details:
- 48 x Gigabit Ethernet Network
- 4 x 10 Gigabit Ethernet Stack
- 2 x 40 Gigabit Ethernet Stack
Media & Performance
Media Type Supported:
- Twisted Pair
- Optical Fiber
Ethernet Technology:
- Gigabit Ethernet
- 10 Gigabit Ethernet
- 40 Gigabit Ethernet
Network Technology:
- 40GBase-X
- 10GBase-X
- 1000Base-T
I/O Expansions
Number of Total Expansion Slots: 6
Expansion Slot Type:
- SFP+
- QSFP+
Shared SFP Slot: No
Number of SFP+ Slots: 4
Network & Communication
Layer Supported: 3
Management & Protocols
Manageable: Yes
Power Description
Power Source: Power Supply
Redundant Power Supply Supported: Yes
Physical Characteristics
Compatible Rack Unit: 1U
Form Factor:
- Rack-mountable
- Wall Mountable
Height: 1.7″
Width: 17.4″
Depth: 13.8″
Weight (Approximate): 12.65 lb
Miscellaneous
Package Contents:
- EX3400-48T Layer 3 Switch
- 1 x AC PSU JPSU-150-AC-AFO
Environmentally Friendly: Yes
Environmental Certification: RoHS-6
Warranty
Limited Warranty: Lifetime
