Manufacturer: Juniper Networks, Inc
Manufacturer Part Number: EX4300-48T-AFI
Manufacturer Website Address: http://www.juniper.net
Brand Name: Juniper
Product Series: EX4300
Product Model: EX4300-48T

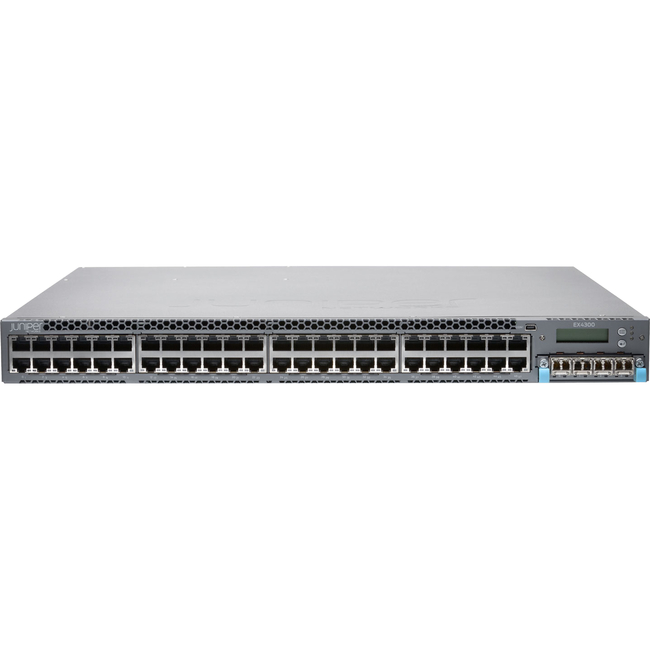

Product Name: EX4300-48T Ethernet Switch
Marketing Information: The Juniper Networks® EX4300 line of Ethernet switches with Virtual Chassis technology combines the carrier-class reliability of modular systems with the economics and flexibility of stackable platforms, delivering a high-performance, scalable solution for data center, campus, and branch office environments.
Offering a full suite of Layer 2 and Layer 3 switching capabilities, the EX4300 satisfies a variety of high-performance applications, including branch, campus, and data center access deployments as well as Gigabit Ethernet (GbE) access deployments. A single 24- port or 48-port switch can be deployed initially. As requirements grow, Juniper Networks Virtual Chassis technology allows up to 10 EX4300 switches to be interconnected and managed as a single device, delivering a scalable, pay-as-you-grow solution for expanding network environments. The EX4300 switches can be interconnected over multiple 40GbE quad small form-factor pluggable plus (QSFP+) transceiver ports to form a 320 gigabit per second (Gbps) backplane. Flexible 1GbE and 10GbE uplink options are also available, enabling high-speed connectivity to aggregation- or core-layer switches which connect multiple floors or buildings.prove productivity.
Product Type: Ethernet Switch
Interfaces/Ports
Total Number of Network Ports: 48
Modular: No
Stack Port: No
Port/Expansion Slot Details:
- 48 x Gigabit Ethernet Network
- 4 x 40 Gigabit Ethernet Expansion Slot
Media & Performance
Media Type Supported: Twisted Pair
Ethernet Technology: Gigabit Ethernet
Network Technology: 10/100/1000Base-T
I/O Expansions
Number of Total Expansion Slots: 4
Expansion Slot Type: QSFP+
Network & Communication
Layer Supported: 3
Management & Protocols
Manageable: Yes
Power Description
PoE (RJ-45) Port: No
Power Source: Power Supply
Redundant Power Supply Supported: Yes
Physical Characteristics
Compatible Rack Unit: 1U
Form Factor:
- Rack-mountable
- Desktop
Height: 1.7″
Width: 17.4″
Depth: 16.4″
Weight (Approximate): 13.01 lb
Miscellaneous
Package Contents:
- EX4300-48T Ethernet Switch
- AC Power Supply
- 2 x Fan Modules
Environmentally Friendly: Yes
Environmental Certification: RoHS-6
Warranty
Limited Warranty: Lifetime
