Manufacturer: Juniper Networks, Inc
Manufacturer Part Number: EX4500-40F-DC-C
Manufacturer Website Address: http://www.juniper.net
Brand Name: Juniper
Product Series: EX
Product Model: EX4500-40F-DC-C

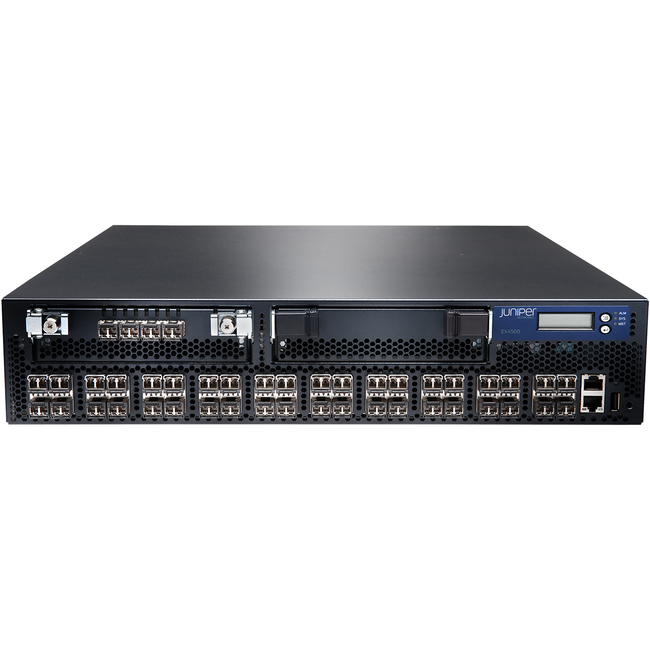

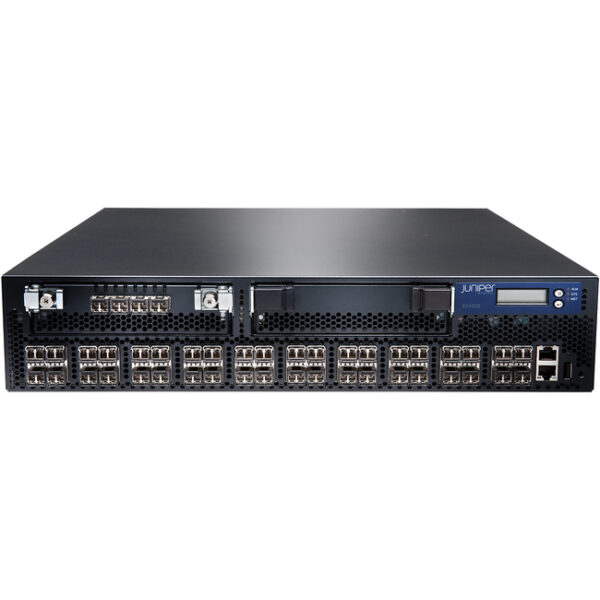

Product Name: EX4500-40F-DC-C Switch Chassis
Marketing Information:
The Juniper Networks EX4500 line of Ethernet switches delivers a scalable, high-performance platform for supporting high-density 1 gigabit per second (Gpbs) and 10 Gbps data center top-of-rack as well as data center, campus, and service provider aggregation deployments.
Product Type: Switch Chassis
Interfaces/Ports
Port/Expansion Slot Details: 40 x 10 Gigabit Ethernet Expansion Slot
Media & Performance
Network Technology: 1000Base-T
I/O Expansions
Number of Total Expansion Slots: 42
Expansion Slot Type: SFP+
Number of SFP+ Slots: 40
Network & Communication
Layer Supported: 3
Management & Protocols
Manageable: Yes
Power Description
Power Source: Power Supply
Redundant Power Supply Supported: Yes
Physical Characteristics
Compatible Rack Unit: 2U
Form Factor: Rack-mountable
Height: 3.4″
Width: 17.3″
Depth: 21″
Weight (Approximate): 37 lb
Miscellaneous
Package Contents:
- EX4500-40F-DC-C Switch Chassis
- Fan Tray (with orange intake label visible)
- DC Power Supply (with orange ejector lever)
- Power Cord
- Power Supply cover panel
- 2 x Uplink module cover panels
- Intraconnect module
Environmentally Friendly: Yes
Environmental Certification: RoHS-5
Warranty
Limited Warranty: 1 Year
