Manufacturer: Juniper Networks, Inc
Manufacturer Part Number: QFX3500-48S4Q-AFO
Manufacturer Website Address: http://www.juniper.net
Brand Name: Juniper
Product Series: QFX
Product Model: QFX3500

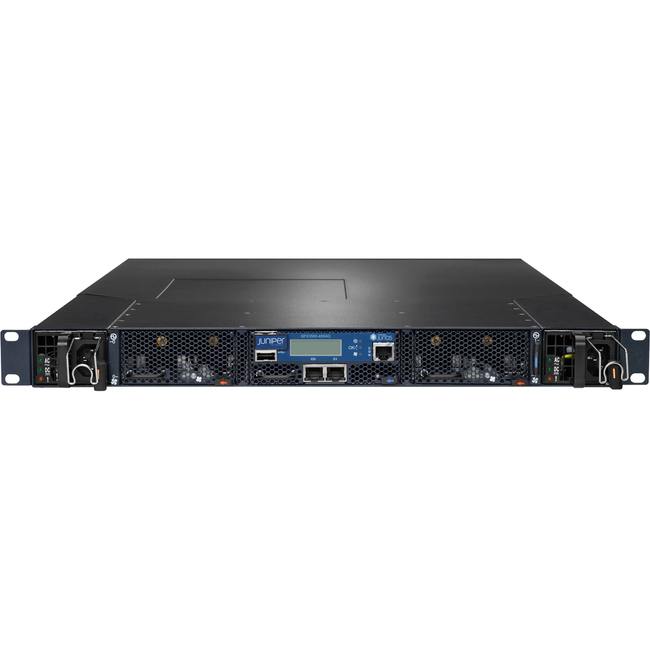

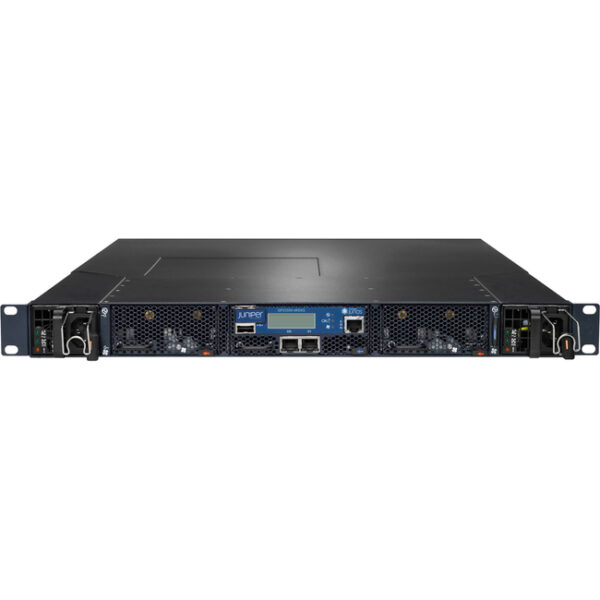

Product Name: QFX3500 Layer 3 Switch
Marketing Information:
The QFX3500 switch delivers a high-performance, ultra-low latency, feature rich L2 and L3 solution for supporting a wide range of deployment scenarios including traditional and virtualized data centers, high-performance computing, network-attached storage, converged server I/O, and cloud computing. A versatile, compact, high-density 10GbE platform that runs the same Junos OS as other Juniper switches, routers and security platforms, the QFX3500 also delivers a fabric-ready edge solution for the Juniper Networks QFabric System.
Product Type: Layer 3 Switch
Interfaces/Ports
Port/Expansion Slot Details:
- 48 x 10 Gigabit Ethernet Expansion Slot
- 4 x 40 Gigabit Ethernet Expansion Slot
I/O Expansions
Number of Total Expansion Slots: 52
Expansion Slot Type:
- QSFP+
- SFP+
Number of SFP+ Slots: 48
Network & Communication
Layer Supported: 3
Management & Protocols
Manageable: Yes
Power Description
PoE (RJ-45) Port: No
Power Source: Power Supply
Redundant Power Supply Supported: Yes
Physical Characteristics
Compatible Rack Unit: 1U
Form Factor: Rack-mountable
Height: 1.8″
Width: 28″
Depth: 17.3″
Weight (Approximate): 30.75 lb
Miscellaneous
Environmental Certification:
- WEEE
- RoHS-6
- REACH
- China RoHS
- 80 Plus Silver
Warranty
Limited Warranty: 1 Year
