Manufacturer: Juniper Networks, Inc
Manufacturer Part Number: QFX5100-24Q-AFO
Manufacturer Website Address: http://www.juniper.net
Brand Name: Juniper
Product Series: QFX5100
Product Model: QFX5100-24Q-AFO

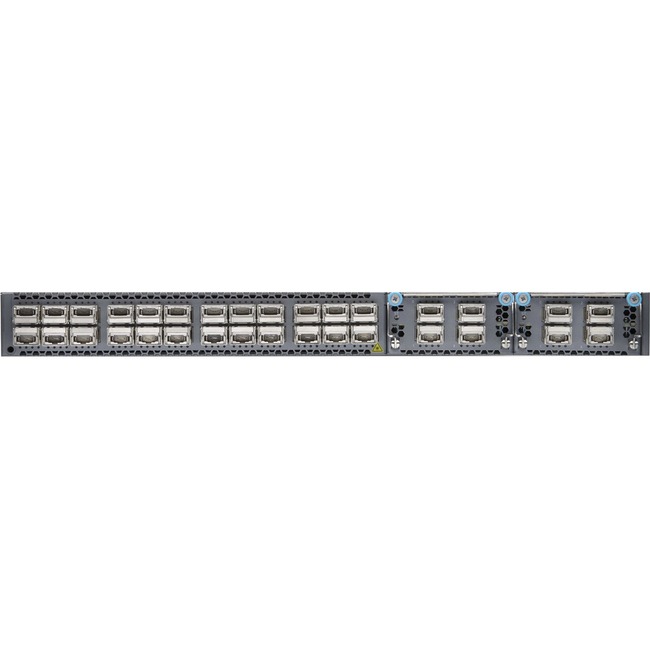

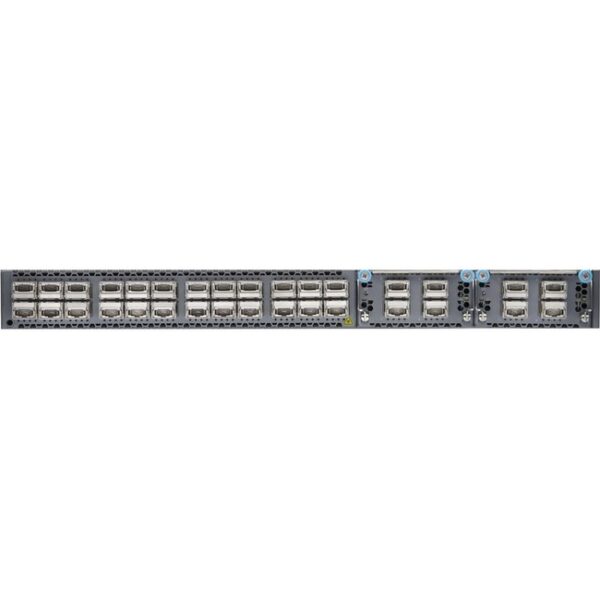

Product Name: QFX5100-24Q-AFO Layer 3 Switch
Marketing Information:
The highly flexible, high-performance Juniper Networks® QFX5100 line of switches provides the foundation for today’s and tomorrow’s dynamic data center. As a critical enabler for IT transformation, the data center network supports cloud and softwaredefined networking (SDN) adoption, as well as rapid deployment and delivery of applications. Mission-critical applications, network virtualization, and integrated or scale-out storage are driving the need for more adaptable networks. With its diverse set of deployment options, including fabric, Layer 3, and spine and leaf, the QFX5100 is the universal building block for data center switching architectures, enabling users to easily adapt as requirements change over time.
Product Type: Layer 3 Switch
Interfaces/Ports
Modular: No
Port/Expansion Slot Details: 24 x 40 Gigabit Ethernet Expansion Slot
Media & Performance
Ethernet Technology: 40 Gigabit Ethernet
I/O Expansions
Number of Total Expansion Slots: 26
Expansion Slot Type: QSFP+
Network & Communication
Layer Supported: 3
Management & Protocols
Manageable: Yes
Power Description
PoE (RJ-45) Port: No
Power Source: Power Supply
Redundant Power Supply Supported: Yes
Physical Characteristics
Compatible Rack Unit: 1U
Form Factor: Rack-mountable
Height: 1.7″
Width: 20.5″
Depth: 17.4″
Weight (Approximate): 21.60 lb
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification:
- RoHS-6
- WEEE
- REACH
- 80 Plus Silver
- China RoHS
Warranty
Limited Warranty: 1 Year
