Manufacturer: Juniper Networks, Inc
Manufacturer Part Number: QFX5110-32Q-AFO
Manufacturer Website Address: http://www.juniper.net
Brand Name: Juniper
Product Series: QFX
Product Model: QFX5110-32Q

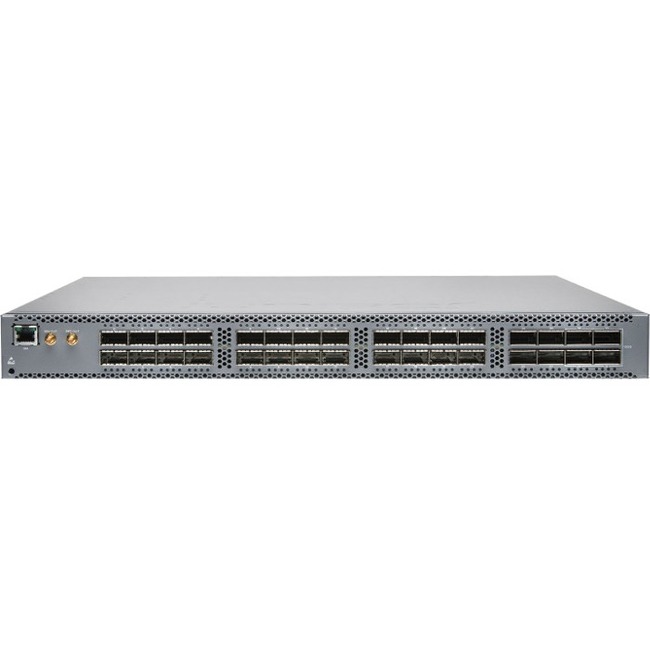

Product Name: QFX5110-32Q Ethernet Switch
Marketing Information:
The ports on the QFX5110-32Q support 40-Gbps or 100-Gbps speeds natively. Of the 28 QSFP+ ports, 0 through 19also support 10-Gbps speeds when the ports are configured as Flexi-pic and channelized using QSFP+ to SFP+ DAC breakout (DACBO) cables. Although all network ports can be configured as either uplink or as access ports, best practice is to configure the four QSFP28 ports (28 through 31) as uplinks to take advantage of the 100-Gbps speeds.
The port panel also provides PTP connections to a grandmaster clock. There are also 10-MHz pulses-per-second (PPS) SubMiniature B (SMB) input and output connections to measure the timing drift to and from the grandmaster clock.
Product Type: Ethernet Switch
Interfaces/Ports
Modular: Yes
Port/Expansion Slot Details:
- 28 x 10 Gigabit Ethernet Expansion Slot
- 4 x 100 Gigabit Ethernet Expansion Slot
Media & Performance
Media Type Supported: Optical Fiber
Ethernet Technology:
- 10 Gigabit Ethernet
- 100 Gigabit Ethernet
Network Technology:
- 10GBase-X
- 100GBase-X
I/O Expansions
Number of Total Expansion Slots: 32
Expansion Slot Type:
- QSFP28
- QSFP+
Shared SFP Slot: No
Network & Communication
Layer Supported: 2
Management & Protocols
Manageable: Yes
Power Description
Power Source: Power Supply
Physical Characteristics
Height: 1.7″
Width: 17.4″
Depth: 20.5″
Weight (Approximate): 24.60 lb
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification:
- WEEE
- China RoHS
- REACH
- RoHS
- Green Dot
Warranty
Limited Warranty: 1 Year
