Manufacturer: Juniper Networks, Inc
Manufacturer Part Number: SRX345-SYS-JB-2AC
Manufacturer Website Address: http://www.juniper.net
Brand Name: Juniper
Product Series: SRX
Product Model: SRX345

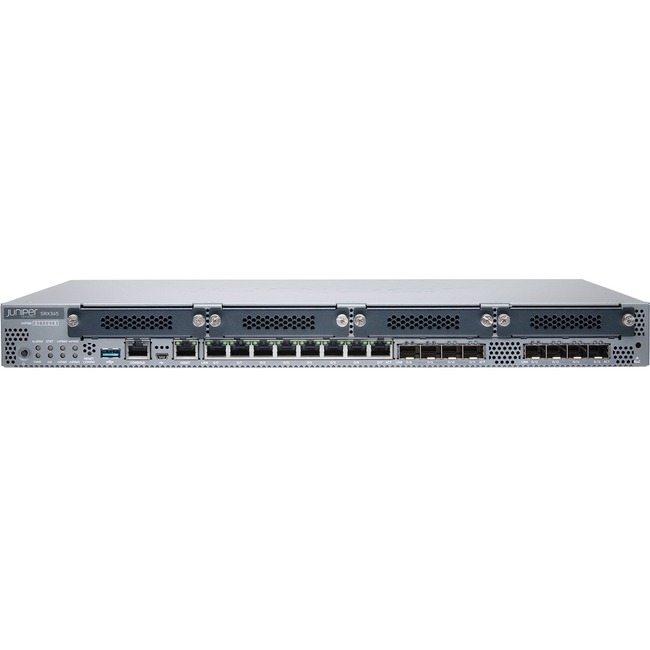

Product Name: SRX345 Router
Marketing Information:
Juniper Networks® SRX300 line of services gateways delivers a next-generation networking and security solution that supports the changing needs of cloud-enabled enterprise networks. Whether rolling out new services and applications across locations, connecting to the cloud, or trying to achieve operational efficiency, the SRX300 line helps organizations realize their business objectives while providing scalable, easy to manage, secure connectivity and advanced threat mitigation capabilities. Next-generation firewall and unified threat management (UTM) capabilities also make it easier to detect and proactively mitigate threats to improve the user and application experience.
The SRX300 line consists of four models:
SRX300: Securing small branch or retail offices, the SRX300 Services Gateway consolidates security, routing, switching, and WAN connectivity in a small desktop device. The SRX300 supports up to 1 Gbps firewall and 300 Mbps IPsec VPN in a single, consolidated, cost-effective networking and security platform.
SRX320: Securely connecting small distributed enterprise branch offices, the SRX320 Services Gateway consolidates security, routing, switching, and WAN connectivity in a small desktop device. The SRX320 supports up to 1 Gbps firewall and 300 Mbps IPsec VPN in a single, consolidated, cost-effective networking and security platform.
SRX340: Securely connecting midsize distributed enterprise branch offices, the SRX340 Services Gateway consolidates security, routing, switching, and WAN connectivity in a 1 U form factor. The SRX340 supports up to 3 Gbps firewall and 600 Mbps IPsec VPN in a single, consolidated, cost-effective networking and security platform.
SRX345: Best suited for midsize to large distributed enterprise branch offices, the SRX345 Services Gateway consolidates security, routing, switching, and WAN connectivity in a 1 U form factor. The SRX345 supports up to 5 Gbps firewall and 800 Mbps IPsec VPN in a single, consolidated, cost-effective networking and security platform.
Product Type: Router
Interfaces/Ports
Total Number of Ports: 8
Powerline: No
Management Port: Yes
I/O Expansions
Number of Total Expansion Slots: 12
Network & Communication
Ethernet Technology: Gigabit Ethernet
Network Technology:
- 1000Base-T
- 1000Base-X
Power Description
Redundant Power Supply Supported: No
Physical Characteristics
Compatible Rack Unit: 1U
Form Factor: Rack-mountable
Height: 14.6″
Width: 17.4″
Depth: 1.7″
Weight (Approximate): 10.80 lb
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification:
- RoHS 2
- WEEE
- RoHS
- China RoHS
- Green Dot
- 80 Plus
- REACH
Warranty
Limited Warranty: 1 Year
