Manufacturer: Juniper Networks, Inc
Manufacturer Part Number: SRX345-SYS-JB-DC
Manufacturer Website Address: http://www.juniper.net
Brand Name: Juniper
Product Series: SRX
Product Model: SRX345

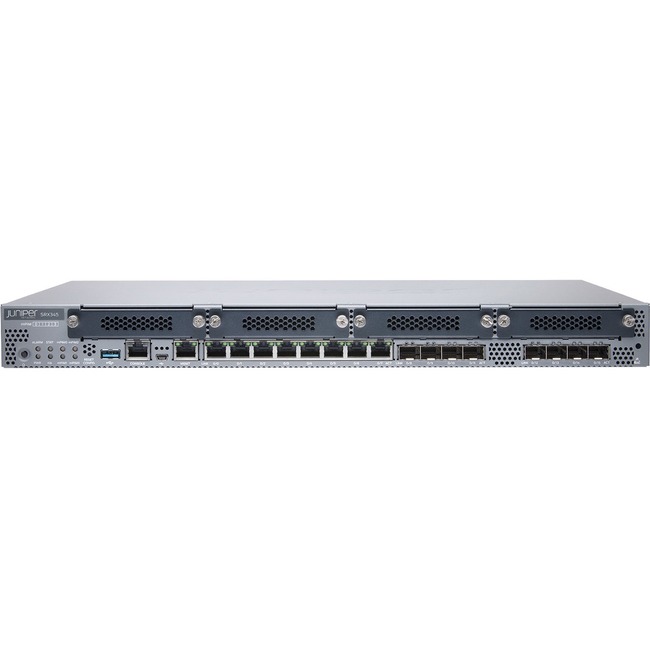

Product Name: SRX345 Router
Marketing Information: The SRX300 line of services gateways combines security, SD-WAN, routing, switching, and WAN interfaces with nextgeneration firewall and advanced threat mitigation capabilities for cost-effective, secure connectivity across distributed enterprise locations. By consolidating fast, highly available switching, routing, security, and next-generation firewall capabilities in a single device, enterprises can remove network complexity, protect and prioritize their resources, and improve user and application experience while lowering total cost of ownership (TCO).
Product Description
Juniper Networks® SRX300 line of services gateways delivers a next-generation secure SDWAN and security solution that supports the changing needs of cloud-enabled enterprise networks. Whether rolling out new services and applications across locations, connecting to the cloud, or trying to achieve operational efficiency, the SRX300 line helps organizations realize their business objectives while providing scalable, easy to manage, secure connectivity and advanced threat mitigation capabilities. Next-generation firewall and unified threat management (UTM) capabilities also make it easier to detect and proactively mitigate threats to improve the user and application experience.
The SRX300 line consists of five models:
SRX300: Securing small branch or retail offices, the SRX300 Services Gateway consolidates security, routing, switching, and WAN connectivity in a small desktop device. The SRX300 supports up to 1 Gbps firewall and 300 Mbps IPsec VPN in a single, cost-effective networking and security platform.
SRX320: Securely connecting small distributed enterprise branch offices, the SRX320 Services Gateway consolidates security, routing, switching, and WAN connectivity in a small desktop device. The SRX320 supports up to 1 Gbps firewall and 300 Mbps IPsec VPN in a single, consolidated, cost-effective networking and security platform.
SRX340: Securely connecting midsize distributed enterprise branch offices, the SRX340 Services Gateway consolidates security, routing, switching, and WAN connectivity in a 1 U form factor. The SRX340 supports up to 3 Gbps firewall and 600 Mbps IPsec VPN in a single, cost-effective networking and security platform.
SRX345: Best suited for midsize to large distributed enterprise branch offices, the SRX345 Services Gateway consolidates security, routing, switching, and WAN connectivity in a 1 U form factor. The SRX345 supports up to 5 Gbps firewall and 800 Mbps IPsec VPN in a single, consolidated, cost-effective networking and security platform.
SRX380: A high-performance and secure SD-WAN gateway, the SRX380 offers superior and reliable WAN connectivity while consolidating security, routing, and switching for distributed enterprise offices. The SRX380 features greater port density than other SRX300 models, with 16x1GbE PoE+ and 4x10GbE ports, and includes redundant dual power supplies, all in a 1 U form factor.
SRX300 Highlights
The SRX300 line of services gateways consists of secure SD-WAN routers that bring high performance and proven deployment capabilities to enterprises that need to build a worldwide network of thousands of remote sites. WAN or Internet connectivity and Wi-Fi module options include:
- Ethernet, serial, T1/E1, ADSL2/2+, and VDSL
- 3G/4G LTE wireless
- 802.11ac Wave 2 Wi-Fi
Product Type: Router
Interfaces/Ports
Total Number of Ports: 8
Powerline: No
Management Port: Yes
I/O Expansions
Number of Total Expansion Slots: 12
Network & Communication
Ethernet Technology: Gigabit Ethernet
Network Technology:
- 1000Base-T
- 1000Base-X
Power Description
PoE (RJ-45) Port: No
Redundant Power Supply Supported: Yes
Physical Characteristics
Compatible Rack Unit: 1U
Form Factor: Rack-mountable
Height: 1.7″
Width: 17.4″
Depth: 14.6″
Weight (Approximate): 10.80 lb
Miscellaneous
Package Contents:
- SRX345 Router
- 1 x DC Power Supply
- Cable
- Rack Mount Kit
Environmentally Friendly: Yes
Environmental Certification: RoHS 2
Warranty
Limited Warranty: 1 Year
