Manufacturer: Lenovo Group Limited
Manufacturer Part Number: 7SD7A05703
Manufacturer Website Address: http://www.lenovo.com/us/en/
Brand Name: Lenovo
Product Series: 5100
Product Model: 5100 PRO
Product Name: ThinkSystem M.2 5100 480GB SATA 6Gbps Non-Hot-Swap SSD
Marketing Information:
M.2 is a solid-state drive (SSD) form factor primarily used as an operating system boot solution. Lenovo ThinkSystem servers support M.2 drives with the addition of a supported M.2 adapter.

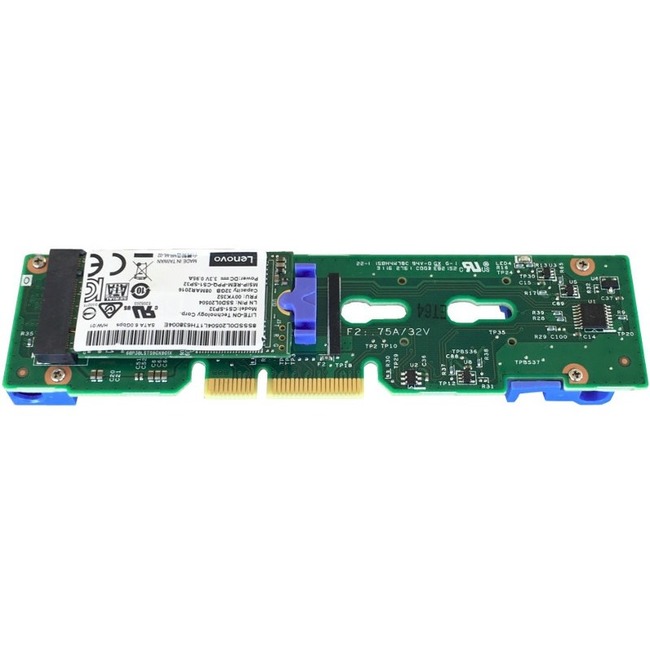

The M.2 drives install into an M.2 adapter which in turn is installed in a dedicated slot on the system board of the ThinkSystem server. With two M.2 drives configured, the drives are configured by default as a RAID-1 mirrored pair for redundancy.
There are two M.2 adapters supported:
- Single M.2 Adapter, which supports one M.2 drive; available as the ThinkSystem M.2 Enablement Kit
- Dual M.2 Adapter, which supports one or two M.2 drives; available as the ThinkSystem M.2 with Mirroring Enablement Kit
Product Type: Solid State Drive
Technical Information
Storage Capacity: 480 GB
Drive Performance
Maximum Read Transfer Rate: 540 MB/s
Maximum Write Transfer Rate: 410 MB/s
Random 4KB Read: 93000IOPS
Random 4KB Write: 43000IOPS
Network & Communication
Wireless LAN: No
Interfaces/Ports
Drive Interface: SATA
Drive Interface Standard: SATA/600
Physical Characteristics
Drive Type: Internal
Form Factor: M.2 2280
Width: 0.9″
Depth: 3.1″
Weight (Approximate): 0.35 oz
Miscellaneous
Device Supported: Server
Compatibility:
Lenovo ThinkSystem Servers:
- ST550 (7X09/7X10)
- SR630 (7X01/7X02)
- SR650 (7X05/7X06)
- SR850 (7X18/7X19)
- SN550 (7X16)
- SN850 (7X15)
Environmentally Friendly: Yes
Environmental Certification:
- RoHS
- WEEE
