Manufacturer: Lenovo Group Limited
Manufacturer Part Number: 3873ER1
Manufacturer Website Address: http://www.lenovo.com/us/en/
Brand Name: Lenovo
Product Model: B6505

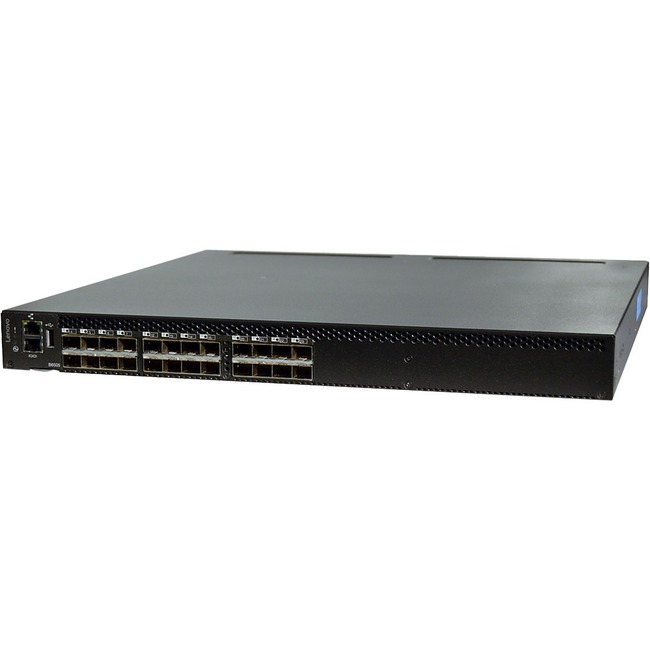

Product Name: B6505 Fiber Channel Switch
Marketing Information:
The Lenovo B6505 and B6510 FC SAN Switches (Machine Type 3873) provide exceptional price/performance value by delivering market-leading 16 Gb Gen 5 Fibre Channel technology and combining flexibility, simplicity, and enterprise-class functionality that supports highly virtualized environments to meet the demands of hyper-scale, private cloud storage.
Designed to enable maximum flexibility and reliability, the Lenovo B6505 and B6510 are compact 1U rack-mount switches that offer low-cost access to industry-leading Storage Area Network (SAN) technology while providing “pay-as-you-grow” scalability to meet the needs of an evolving storage environment.
The Lenovo B6505 offers up to 24 ports (12 ports licensed by default; the remaining 12 ports can be licensed by purchasing a 12-port license pack), and the Lenovo B6510 offers up to 48 ports (24 ports licensed by default; the remaining ports can be licensed in 12-port increments). Lenovo FC SAN switch ports support 2/4/8/16 Gbps speeds to deliver easy integration into the existing SAN environments while realizing the benefits of Gen 5 Fibre Channel connectivity. The switches offer a rich set of standard features with the options to expand their capabilities as needed.
The Lenovo B6505 and B6510 feature the EZSwitchSetup wizard and can be configured in Access Gateway Mode to simplify deployment. The switches provide full non-blocking performance with Ports On Demand scalability to support SAN expansion and enable long-term investment protection. The following figure shows the Lenovo B6510.
Product Type: Fibre Channel Switch
Interfaces/Ports
Number of Fibre Channel Ports: 12
Media & Performance
Data Transfer Rate: 16 Gbit/s
I/O Expansions
Number of Total Expansion Slots: 12
Expansion Slot Type: SFP
Management & Protocols
Manageable: Yes
Power Description
Redundant Power Supply: Yes
Physical Characteristics
Compatible Rack Unit: 1U
Form Factor: Rack-mountable
Height: 1.7″
Width: 17.2″
Depth: 17.4″
Weight (Approximate): 17.20 lb
Miscellaneous
Package Contents:
- B6505 Fiber Channel Switch
- Serial Cable (DB-9/RJ-45 to RJ-45)
- Rubber feet
- Fixed Rack Mount kit
- EZSwitch Setup CD
- Lenovo B6505 or B6510 QuickStart Guide
- Access Gateway Quick Start Guide
- Documentation CD
- Warranty Information
Environmentally Friendly: Yes
Environmental Certification: EU RoHS
Warranty
Limited Warranty: 1 Year
