Manufacturer: Lenovo Group Limited
Manufacturer Part Number: 00YK222
Manufacturer Website Address: http://www.lenovo.com/us/en/
Brand Name: Lenovo
Product Series: DC S3610

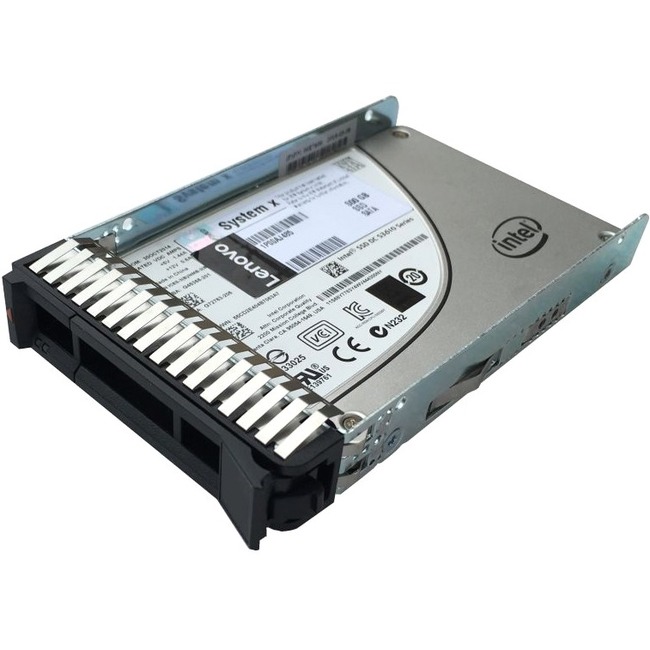

Product Name: Intel S3610 1.2TB Enterprise Mainstream SATA G3HS 2.5″ SSD
Marketing Information: Abstract
The Intel S3610 Enterprise Mainstream SATA solid-state drives (SSDs) for System x are advanced data center SSDs optimized for mixed read-write performance, endurance and strong data protection. The drives are available in either 2.5-inch or 3.5-inch drive form factor.
This product guide provides essential presales information to understand the S3610 SSD offerings and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about S3610 SSDs and consider their use in IT solutions.
Introduction
The Intel S3610 Enterprise Mainstream SATA solid-state drives (SSDs) for System x are advanced data center SSDs optimized for mixed read-write performance, endurance and strong data protection. The drives are available in either 2.5-inch or 3.5-inch drive form factor.
The Intel SSD S3610 drives with 3 full drives writes per day (DWD) are an excellent choice as cache in transactional application and high-speed storage for enterprise databases.
Did you know?
By combining the latest 20 nm MLC NAND flash memory technology with Intel’s latest controller technology, the design of Intel S3610 Enterprise Mainstream SATA SSDs delivers consistent performance, reduced power consumption, and end-to-end data protection, as well as being optimized for endurance and IOPS/watt.
Rigorous testing of Intel S3610 Enterprise Mainstream SATA SSDs by Lenovo through the ServerProven® program ensures a high degree of storage subsystem compatibility and reliability. Providing additional peace of mind, these drives are covered under Lenovo warranty.
Product Type: Solid State Drive
Technical Information
Storage Capacity: 1.20 TB
Encryption Standard: 256-bit
Drive Performance
Maximum Read Transfer Rate: 550 MB/s
Maximum Write Transfer Rate: 520 MB/s
Network & Communication
Wireless LAN: No
Interfaces/Ports
Drive Interface: SATA
Physical Characteristics
Drive Type: Internal
Form Factor: 2.5″
Hot Swappable: Yes
Height: 0.3″
Width: 2.8″
Depth: 3.9″
Weight (Approximate): 2.61 oz
Miscellaneous
Package Contents:
- Intel S3610 1.2TB Enterprise Mainstream SATA G3HS 2.5″ SSD
- Support Flyer for SSDs
- Warranty Flyer and Important Notices Document
Device Supported: Server
Compatibility: Lenovo ThinkServer sd350 Server
Lenovo System x Servers:
- x3100 M5
- x3250 M6
- x3550 M5
- x3650 M5
- x3850 X6
- x3950 X6
- x3500 M5
Lenovo Flex Systems:
- x240 M5
- x280
- x480
- x880 X6
Environmentally Friendly: Yes
Environmental Certification:
- WEEE
- RoHS
- China RoHS
Warranty
Limited Warranty: 1 Year
