Overview
General Information
Manufacturer: Lenovo Group Limited
Manufacturer Part Number: 00AG510
Manufacturer Website Address: http://www.lenovo.com/us/en/
Brand Name: Lenovo
Product Series: I350
Product Model: I350-T2

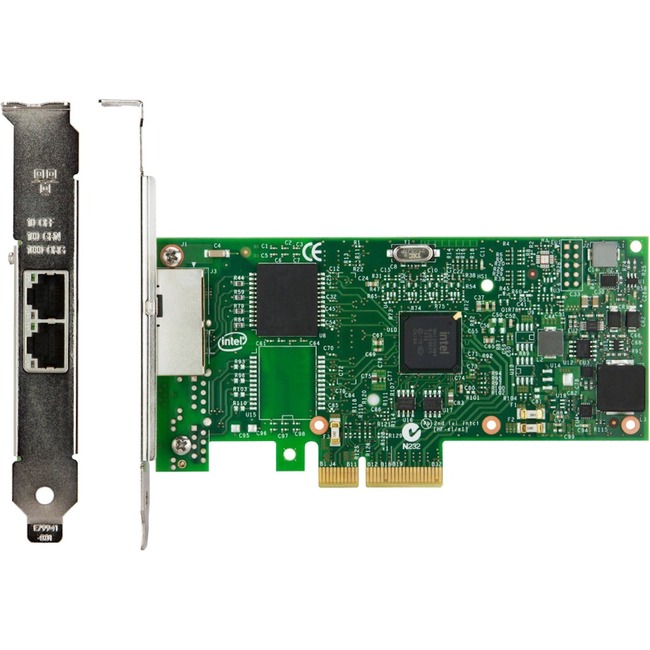

Product Name: Intel I350-T2 2xGbE BaseT Adapter for IBM System x
Marketing Information: The Intel I350 GbE Network Adapter Family for IBM® System x® features a robust, standards-based portfolio that delivers economical Ethernet features in an industry-standard PCIe form factor, and an IBM ML2 form factor. The IBM ML2 Network Adapter is placed into a ML2 slot on equipped IBM System x servers, enabling you to preserve your PCIe slots for other purposes. The IBM ML2 Adapter also enables the IBM System x server’s management traffic to be combined with the application traffic. By merging this traffic onto a single port, your cabling and switching costs are greatly reduced.
Packaged Quantity: 1
Product Type: Gigabit Ethernet Card
Interfaces/Ports
Host Interface: PCI Express 2.0
Total Number of Ports: 2
Number of Network (RJ-45) Ports: 2
Media & Performance
Media Type Supported: Twisted Pair
Network & Communication
Network Technology: 10/100/1000Base-T
Physical Characteristics
Form Factor: Plug-in Card
Height: 2.7″
Width: 0.7″
Depth: 5.3″
Miscellaneous
Package Contents:
Manufacturer: Lenovo Group Limited
Manufacturer Part Number: 00AG510
Manufacturer Website Address: http://www.lenovo.com/us/en/
Brand Name: Lenovo
Product Series: I350
Product Model: I350-T2
Product Name: Intel I350-T2 2xGbE BaseT Adapter for IBM System x
Marketing Information: The Intel I350 GbE Network Adapter Family for IBM® System x® features a robust, standards-based portfolio that delivers economical Ethernet features in an industry-standard PCIe form factor, and an IBM ML2 form factor. The IBM ML2 Network Adapter is placed into a ML2 slot on equipped IBM System x servers, enabling you to preserve your PCIe slots for other purposes. The IBM ML2 Adapter also enables the IBM System x server’s management traffic to be combined with the application traffic. By merging this traffic onto a single port, your cabling and switching costs are greatly reduced.
Packaged Quantity: 1
Product Type: Gigabit Ethernet Card
Interfaces/Ports
Host Interface: PCI Express 2.0
Total Number of Ports: 2
Number of Network (RJ-45) Ports: 2
Media & Performance
Media Type Supported: Twisted Pair
Network & Communication
Network Technology: 10/100/1000Base-T
Physical Characteristics
Form Factor: Plug-in Card
Height: 2.7″
Width: 0.7″
Depth: 5.3″
Miscellaneous
Package Contents:
- Intel I350-T2 2xGbE BaseT Adapter for IBM System x
- 3U Bracket
- 1 x Driver CD
- 1 x 2U Bracket
- 1 x Publications CD
- 1 x Safety Flyer
Device Supported: Server
Warranty
Limited Warranty: 1 Year
