Manufacturer: Lenovo Group Limited
Manufacturer Part Number: 01GR786
Manufacturer Website Address: http://www.lenovo.com/us/en/
Brand Name: Lenovo
Product Model: PM1633a

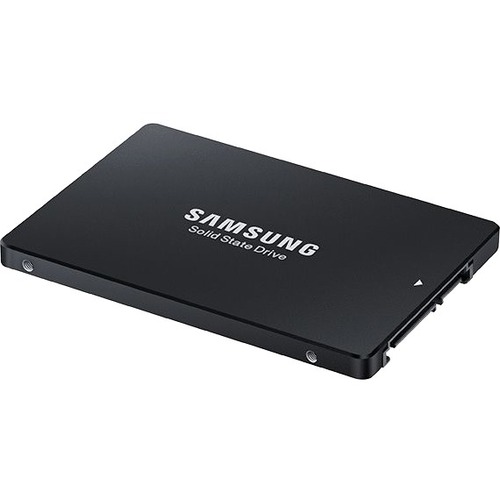

Product Name: PM1633a 3.84TB Enterprise Capacity 12Gb SAS G3HS 2.5″ SSD
Marketing Information: Abstract
The PM1633a Enterprise Capacity solid-state drives (SSDs) from Lenovo provide high-performance, reliable storage solutions for high-capacity enterprise applications. Designed for dense storage and with a 12 Gb SAS interface, these drives feature all the capacity and performance that is needed to replace large numbers of 15K rpm and 10K rpm spinning disks, and consolidate storage into tightly packed server configurations.
This product guide provides essential presales information to understand the PM1633a Enterprise Capacity 12Gb SAS SSD offerings and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the SSDs and consider their use in IT solutions.
Introduction
The Lenovo PM1633a Enterprise Capacity 12Gb SAS solid-state drives (SSDs) in capacities of 3.84 TB and 7.68 TB capacities are next-generation high-capacity SSDs suitable for a wide range of applications of running on both System x and ThinkServer platforms.
The PM1633a Enterprise Capacity SSDs are designed for dense storage and with a 12 Gb SAS interface, these drives feature all the capacity and performance that is needed to replace large numbers of 15K rpm and 10K rpm spinning disks, and consolidate storage into tightly packed server configurations.
Did you know?
Enterprise Capacity SSDs are a category of cost-effective high-capacity SSDs where it makes sense to store all of your data on the SSDs, and not use the SSDs only for caching or indexes.
Unlike SATA drives, the 12 Gb/s SAS interface on these drives supports full duplex data transfer for higher performance, as well as dual port connectivity and enterprise-level error recovery for better availability.
Product Type: Solid State Drive
Technical Information
Storage Capacity: 3.84 TB
Drive Performance
Maximum Read Transfer Rate: 940 MB/s
Maximum Write Transfer Rate: 1000 MB/s
Network & Communication
Wireless LAN: No
Interfaces/Ports
Drive Interface: SAS
Drive Interface Standard: 12Gb/s SAS
Physical Characteristics
Drive Type: Internal
Form Factor: 2.5″
Hot Swappable: Yes
Height: 0.6″
Width: 2.8″
Depth: 3.9″
Weight (Approximate): 5.64 oz
Miscellaneous
Package Contents:
- PM1633a 3.84TB Enterprise Capacity 12Gb SAS G3HS 2.5″ SSD
- Support Flyer for SSDs
- Warranty Flyer
- Important Notices Flyer
Device Supported: Server
Compatibility: Lenovo System x Servers:
- x3550 M5 (8869)
- x3650 M5 (8871)
- x3850 X6/x3950 X6 (6241, E7 v4)
- nx360 M5 (5465, E5 v4)
- sd350 (5493)
Environmentally Friendly: Yes
Environmental Certification: RoHS
Warranty
Limited Warranty: 1 Year
