Manufacturer: Lenovo Group Limited
Manufacturer Part Number: 01CV760
Manufacturer Website Address: http://www.lenovo.com/us/en/
Brand Name: Lenovo

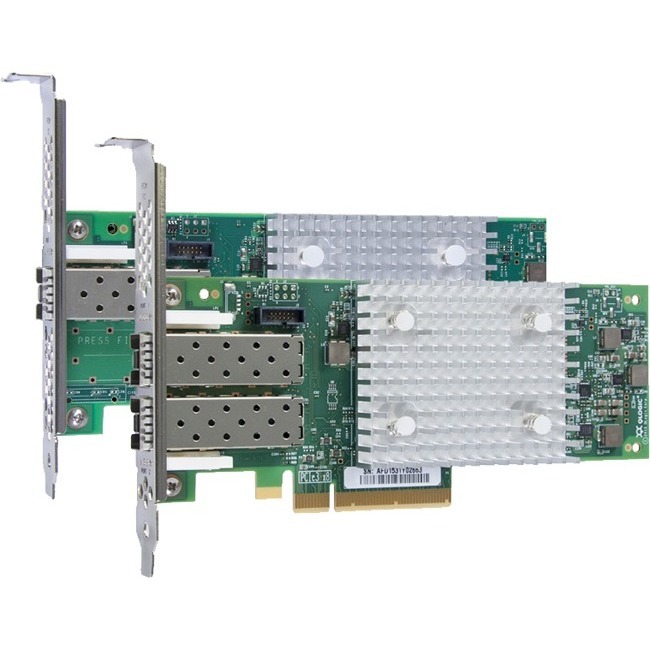

Product Name: QLogic 16Gb Enhanced Gen5 FC Dual-port HBA
Marketing Information:
The QLogic Enhanced Generation 5 (Gen 5) 16 Gb Fibre Channel (FC) Single and Dual-port Host Bus Adapters (HBAs) for Lenovo ThinkSystem and System x servers offer industry leading native FC performance with extremely low CPU usage with full hardware offloads.
Enhanced Gen 5 FC technology provides advanced storage networking features capable of supporting the most demanding virtualized and private cloud environments, while fully leveraging the capabilities of high-performance 16 Gb FC (16GFC) and all-flash arrays (AFAs). Powerful management tools automate and simplify SAN provisioning to help reduce cost and complexity, while the unmatched 16 Gbps performance eliminates potential I/O bottlenecks in today’s powerful multiprocessor, multicore servers.
Product Type: Fibre Channel Host Bus Adapter
Technical Information
Total Number of Fibre Channel Ports: 2
Host Interface: PCI Express 3.0 x8
Media & Performance
Data Transfer Rate: 16 Gbit/s
I/O Expansions
Expansion Slot Type: SFP+
Physical Characteristics
Form Factor: Plug-in Card
Card Height: Low-profile
Height: 2.7″
Width: 6.6″
Miscellaneous
Package Contents:
- QLogic 16Gb Enhanced Gen5 FC Dual-port HBA
- Standard (3U) and Low-profile (2U) Brackets
Compatibility:
Lenovo Devices:
- ST550 (7X09/7X10)
- SR530 (7X07/7X08)
- SR550 (7X03/7X04)
- SR570 (7Y03/7Y04)
- SR590 (7X98/7X99)
- SR630 (7X01/7X02)
- SR650 (7X05/7X06)
- SR850 (7X18/7X19)
- SR860 (7X69/7X70)
- SR950 (7X11/12/13)
- SD530 (7X21)
- x3550 M5 (8869)
- x3650 M5 (8871)
- x3850 X6/x3950 X6 (6241, E7 v4)
- nx360 M5 (5465, E5-2600 v4)
- x3500 M5 (5464)
- x3550 M5 (5463)
- x3650 M5 (5462)
- x3850 X6/x3950 X6 (6241, E7 v3)
- nx360 M5 (5465)
Warranty
Limited Warranty: 1 Year
