Manufacturer: Lenovo Group Limited
Manufacturer Part Number: 64113B2
Manufacturer Website Address: http://www.lenovo.com/us/en/
Brand Name: Lenovo
Product Model: S3200

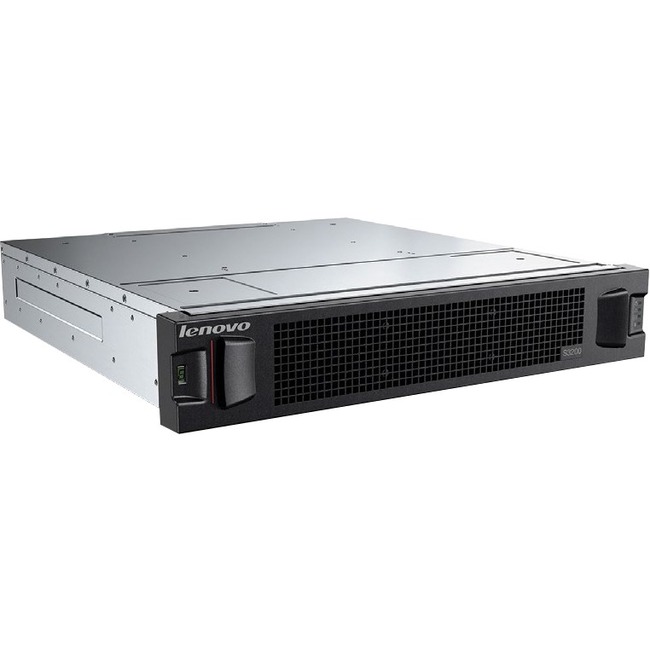

Product Name: S3200 LFF Chassis Dual SAS Controller
Marketing Information:
Highlights
- Hybrid configurations and real-time tiering provide AFA-like performance at a fraction of the cost
- Scalable up to 192 drives
- Extreme performance: 100,000 IOPS, 6.4Gbps Read and 5.3Gbps Write speeds
- Hybrid connectivity with Fibre Channel and iSCSI, or SAS
Features & Performance
The Lenovo Storage S3200 is a feature-rich, high-performing mid-range SAN ready for demanding workloads for any environment. Offering hybrid configurations and real-time tiering, the S3200 can provide near All-Flash-Array (AFA) performance, up to 100,000 IOPS, at a fraction of the cost. Along with extreme performance, the S3200 provides an easy-to-use GUI, Thin Provisioning, Virtual Snapshots, Flash Cache, Virtualized Storage, Rapid RAID Rebuild and more. By combining high performance and incredible features, the S3200 is the perfect mid-range SAN to support your business needs.
Easy Integration
The S3200 gives you storage flexibility which can be easily integrated into any network environment. Supporting hybrid connectivity options, you can choose between 8 or 16 Gbps FC and/or 1 or 10 Gbps ISCSI, or 12Gbps SAS. This unique hybrid connection allows the S3200 to use both FC and iSCSI at the same time. Along with flexible fabric choices, the S3200 supports up to 192 drives and virtualizes pooled storage across multiple drive types, which improves I/O. This combination of flexibility and virtualizing storage across the array keeps performance high and integration into your environment easy.
Business Optimized
The S3200 is a unique SAN product designed to provide you what you want, High performance, flexible configurations, and dependability all at a convenient price. Built to be always on with 99.999 percent availability and multi-pathing, your company can depend on the S3200. Configured with dual controllers, redundant power supplies and hot swap drives and fans, your data is available when you need it. As your storage needs grow, the S3200 scales out with thin positioning allowing your array to grow with you. No matter if your organization is a large enterprise or a small business, the simple, flexible, and optimized mid-range SAN S3200 is the right choice to support your data needs.
Product Type: DAS Storage System
Storage
Number of Hard Drives Supported: 12
I/O Expansions
Number of Total Expansion Bays: 12
Number of 3.5″ Bays: 12
Controllers
Number of Controllers: 2
Controller Type: Serial Attached SCSI (SAS)
RAID Levels:
- 0, 1, 3, 5, 6, 10, 50
- 1
- 3
- 5
- 6
- 10
- 50
Interfaces/Ports
Host Interface: SAS
Physical Characteristics
Form Factor: Rack-mountable
Rack Height: 2U
