Manufacturer: Lenovo Group Limited
Manufacturer Part Number: 70AB001VUX
Manufacturer Website Address: http://www.lenovo.com/us/en/
Brand Name: Lenovo
Product Line: ThinkServer
Product Series: RD340
Product Model: 70AB001VUX

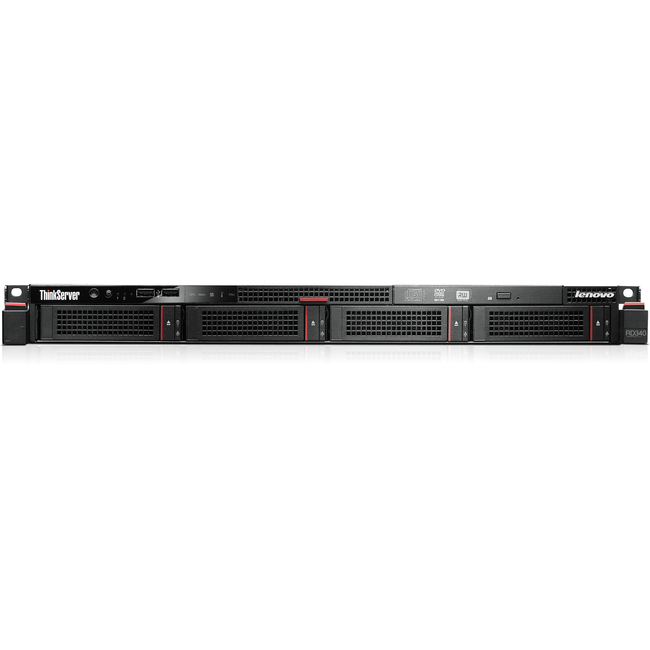

Product Name: ThinkServer RD340 70AB001VUX Server
Marketing Information: FEATURE-RICH. BUILT-IN VALUE.
The Lenovo ThinkServer RD340 is a highly efficient, 1U rack server loaded with built-in features at a great price.
Balanced Performance
What does balanced performance mean? It means the Lenovo ThinkServer RD340 is loaded with features and packaged in a slim, 1U design. Up to two Intel® Xeon® E5-2400 v2 Series processors give you outstanding performance. With reliability features such as hot-swap hard drives, integrated RAID, and redundant power and cooling, you get peace of mind that your data will stay safe and your system will stay up and running. This enterprise-class server has enough computing power for your infrastructure, collaboration, and line-of-business applications.
Product Type: Server
Processor
Number of Processors Supported: 2
Number of Processors Installed: 1
Processor Manufacturer: Intel
Processor Type: Xeon
Processor Model: E5-2420 V2
Processor Core: Hexa-core (6 Core)
Processor Speed: 2.20 GHz
Cache: 15 MB
Chipset
Chipset Manufacturer: Intel
Chipset Model: C606
Memory
Standard Memory: 8 GB
Memory Technology: DDR3L SDRAM
Number of Total Memory Slots: 12
Storage
Optical Drive Type: DVD-Writer
Controllers
Controller Type:
- Serial ATA/600
- 6Gb/s SAS
RAID Supported: Yes
RAID Levels: 0, 1, 10
I/O Expansions
Number of Total Expansion Bays: 5
Number of External 5.25″ Bays: 1
Number of 3.5″ Bays: 4
Number of Total Expansion Slots: 2
Display & Graphics
Graphics Controller Manufacturer: ASPEED
Graphics Controller Model: AST2300
Network & Communication
Ethernet Technology: Gigabit Ethernet
Interfaces/Ports
Total Number of USB Ports: 6
Number of USB 2.0 Ports: 6
Network (RJ-45): Yes
VGA: Yes
Remote Management: Yes
Operating System
Operating System: No
Power Description
Number of Power Supplies Installed: 1
Maximum Power Supply Wattage: 550 W
Miscellaneous
Package Contents:
- ThinkServer RD340 70AB001VUX Server
- Rail Kit
Energy Star: Yes
Environmentally Friendly: Yes
Environmental Certification:
- ENERGY STAR 2.0
- RoHS
Physical Characteristics
Form Factor: Rack
Rack Height: 1U
Height: 1.7″
Width: 19″
Depth: 28.9″
Weight (Approximate): 37.48 lb
Warranty
Limited Warranty: 3 Year
