Manufacturer: Lenovo Group Limited
Manufacturer Part Number: 70D60026UX
Manufacturer Website Address: http://www.lenovo.com/us/en/
Brand Name: Lenovo
Product Line: ThinkServer
Product Series: RD350
Product Model: 70D60026UX

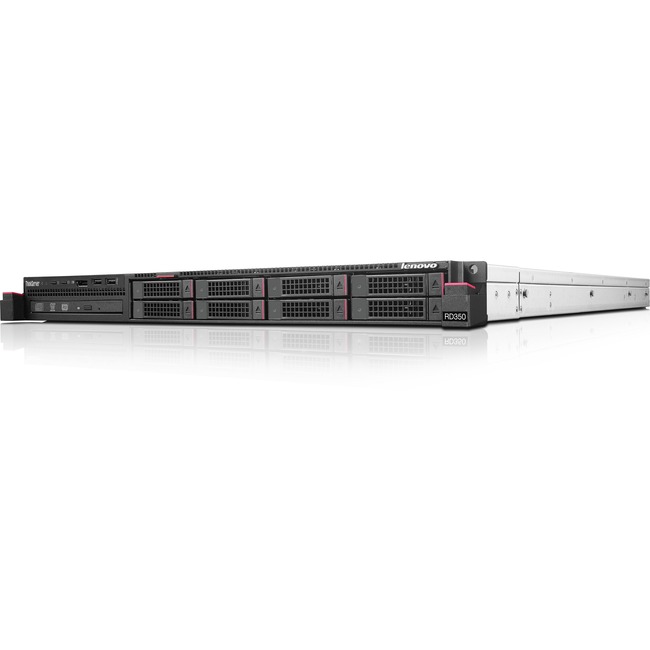

Product Name: ThinkServer RD350 70D60026UX Server
Marketing Information: Balanced Performance
The Lenovo ThinkServer RD350 is loaded with the features you need and nothing you don’t – all in a slim, 1U design. Up to two Intel® Xeon® E5-2600 v3 Series processors give you outstanding performance so your employees can be productive. With reliability features such as hot-swap hard drives, embedded RAID and hot-swap and redundant power, you get peace of mind that your data will stay safe and your system will stay up and running. This enterprise-class server has just the right amount of computing power for your infrastructure, collaboration and line-of-business applications.
Product Type: Server
Processor
Number of Processors Supported: 2
Number of Processors Installed: 1
Processor Manufacturer: Intel
Processor Type: Xeon
Processor Model: E5-2630 v3
Processor Core: Octa-core (8 Core)
Processor Speed: 2.40 GHz
Cache: 20 MB
Memory
Standard Memory: 8 GB
Memory Technology: DDR4 SDRAM
Number of Total Memory Slots: 16
Storage
Optical Drive Type: DVD-Writer
Controllers
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 0, 1, 10
I/O Expansions
Number of Total Expansion Bays: 5
Number of External 5.25″ Bays: 1
Number of 3.5″ Bays: 4
Number of Total Expansion Slots: 1
Display & Graphics
Graphics Controller Manufacturer: ASPEED
Graphics Controller Model: AST2400
Graphics Memory Capacity: 16 MB
Network & Communication
Ethernet Technology: Gigabit Ethernet
Interfaces/Ports
Total Number of USB Ports: 4
Number of USB 2.0 Ports: 2
Number of USB 3.0 Ports: 2
Network (RJ-45): Yes
VGA: Yes
Remote Management: Yes
DisplayPort: Yes
Operating System
Operating System: No
Power Description
Input Voltage:
- 120 V AC
- 230 V AC
Number of Power Supplies Installed: 1
Maximum Power Supply Wattage: 550 W
Miscellaneous
Package Contents:
- ThinkServer RD350 70D60026UX Server
- Slide Rack Kit
Physical Characteristics
Form Factor: Rack
Rack Height: 1U
Height: 1.7″
Width: 19″
Depth: 30.8″
Weight (Approximate): 42.11 lb
Warranty
Limited Warranty: 3 Year
