Manufacturer: Lenovo Group Limited
Manufacturer Part Number: 70AH001SUX
Manufacturer Website Address: http://www.lenovo.com/us/en/
Brand Name: Lenovo
Product Line: ThinkServer
Product Series: RD440
Product Model: 70AH001SUX

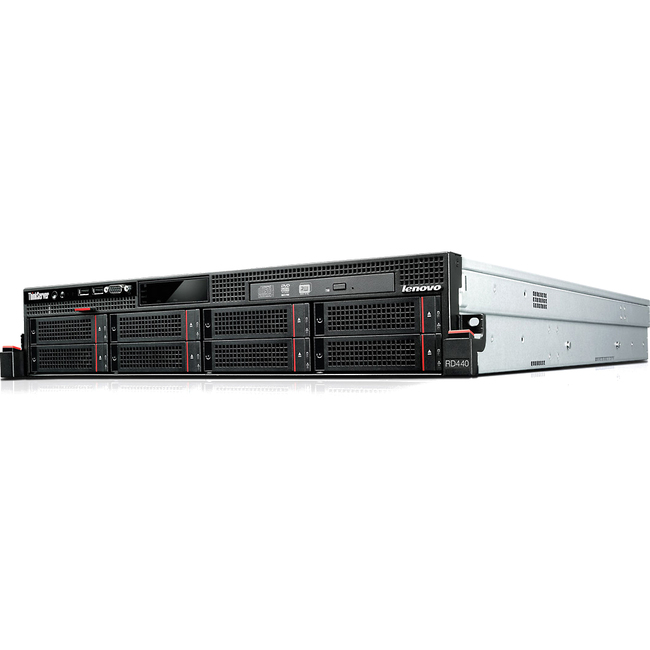

Product Name: ThinkServer RD440 70AH001SUX Server
Marketing Information: STORAGE-RICH. REMARKABLE VALUE.
The Lenovo ThinkServer RD440 is a value-priced, 2U rack server offering impressive storage capacity, easy manageability, and power-saving features.
Storage-Rich
The Lenovo ThinkServer RD440 is a dual-socket, 2U server that offers flexible configuration options, so you can create the right system for your needs. If you’re a small-to medium-sized business, you’ll love this server for its large, cost-effective storage capacity – up to 48TB – with a wide array of hot-swap hard-disk and solid-state drive choices. An integrated RAID storage controller with up to RAID 10 capability is standard, to keep your business-critical data safe. For more protection, upgrade your ThinkServer RAID adapter to give you additional RAID levels and optional battery backup and performance-enhancing features. In addition to being perfect for your infrastructure, collaboration, and line-of-business applications, the RD440 is also great for web-serving and hosting.
Product Type: Server
Processor
Number of Processors Supported: 2
Number of Processors Installed: 1
Processor Manufacturer: Intel
Processor Type: Xeon
Processor Model: E5-2420 V2
Processor Core: Hexa-core (6 Core)
Processor Speed: 2.20 GHz
Cache: 15 MB
Chipset
Chipset Manufacturer: Intel
Chipset Model: C606
Memory
Standard Memory: 8 GB
Memory Technology: DDR3L SDRAM
Number of Total Memory Slots: 12
Storage
Optical Drive Type: DVD-Writer
Controllers
Controller Type:
- Serial ATA/600
- 6Gb/s SAS
RAID Supported: Yes
RAID Levels: 0, 1, 10
I/O Expansions
Number of Total Expansion Bays: 9
Number of External 5.25″ Bays: 1
Number of 3.5″ Bays: 8
Display & Graphics
Graphics Controller Manufacturer: ASPEED
Graphics Controller Model: AST2300
Network & Communication
Ethernet Technology: Gigabit Ethernet
Interfaces/Ports
Total Number of USB Ports: 6
Number of USB 2.0 Ports: 6
Network (RJ-45): Yes
VGA: Yes
Remote Management: Yes
Operating System
Operating System: No
Power Description
Number of Power Supplies Installed: 1
Maximum Power Supply Wattage: 800 W
Miscellaneous
Package Contents:
- ThinkServer RD440 70AH001SUX Server
- Rail Kit
Energy Star: Yes
Environmentally Friendly: Yes
Environmental Certification:
- ENERGY STAR 2.0
- RoHS
Physical Characteristics
Form Factor: Rack
Rack Height: 2U
Height: 3.4″
Width: 19″
Depth: 28.9″
Weight (Approximate): 58.42 lb
Warranty
Limited Warranty: 3 Year
