Manufacturer: Lenovo Group Limited
Manufacturer Part Number: 70AMS02S00
Manufacturer Website Address: http://www.lenovo.com/us/en/
Brand Name: Lenovo
Product Line: ThinkServer
Product Series: TS440
Product Model: 70AMS02S00

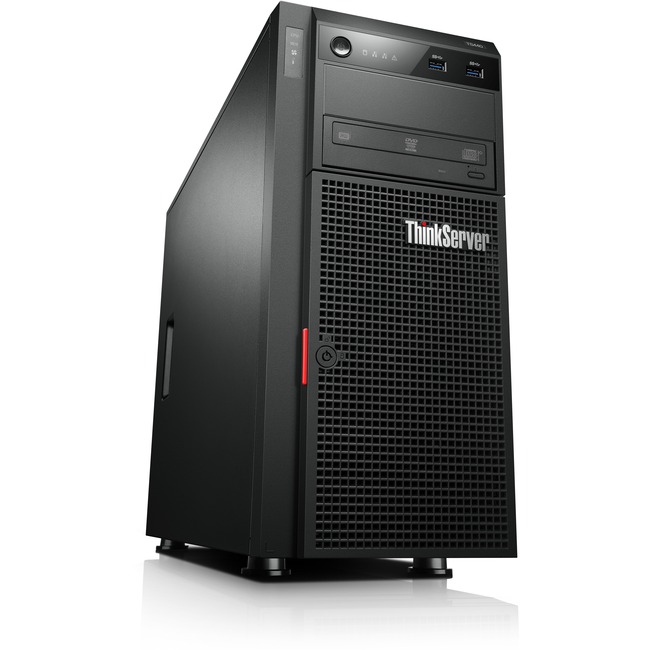

Product Name: ThinkServer TS440 70AMS02S00
Marketing Information: Enterprise-Class
The ThinkServer TS440 is a true enterprise-class server. Thanks to the increased performance of the latest Intel® Xeon® E3-1200 v3 series processors, the TS440 has the power and speed to handle your workload with ease. To help keep you up and running and your data safe, the TS440 includes reliability features such as error correcting code (ECC) memory and an onboard storage controller with the capability of implementing up to RAID 5. You can also choose between enterprise SAS or SATA hot-swap drives. Plus, the TS440 is designed for 24/7 operation and is certified for MSP support with many ecosystem vendors
Product Type: Server
Processor
Number of Processors Supported: 1
Number of Processors Installed: 1
Processor Manufacturer: Intel
Processor Type: Xeon
Processor Model: E3-1220 v3
Processor Core: Quad-core (4 Core)
Processor Speed: 3.10 GHz
Cache: 8 MB
Chipset
Chipset Manufacturer: Intel
Chipset Model: C226
Memory
Standard Memory: 16 GB
Maximum Memory Supported: 32 GB
Memory Technology: DDR3 SDRAM
Number of Total Memory Slots: 4
Storage
Number of Hard Drives: 3
Total Hard Drive Capacity: 1.80 TB
Hard Drive Interface: 6Gb/s SAS
Hard Drive RPM: 10000
Hard Drive Configuration: 3 x 600GB
Optical Drive Type: DVD-Reader
Controllers
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 0, 1, 5, 10
I/O Expansions
Number of External 5.25″ Bays: 2
Number of Total Expansion Slots: 4
Network & Communication
Ethernet Technology: Gigabit Ethernet
Interfaces/Ports
Total Number of USB Ports: 8
Number of USB 2.0 Ports: 2
Number of USB 3.0 Ports: 6
Network (RJ-45): Yes
VGA: Yes
Operating System
Operating System: No
Power Description
Maximum Power Supply Wattage: 450 W
Miscellaneous
Energy Star: Yes
Environmentally Friendly: Yes
Environmental Certification:
- GREENGUARD
- ENERGY STAR 1.1
- RoHS
Physical Characteristics
Form Factor: Tower
Rack Height: 5U
Height: 16.9″
Width: 7.7″
Depth: 23.4″
Weight (Approximate): 61.70 lb
