Manufacturer: Lenovo Group Limited
Manufacturer Part Number: 7ZT7A00547
Manufacturer Website Address: http://www.lenovo.com/us/en/
Brand Name: Lenovo
Product Name: ThinkSystem 10Gb 4-Port SFP+ LOM
Marketing Information: The Intel Ethernet Connection X722 is a network controller embedded into the Intel C624 “Lewisburg” PCH chipset of Lenovo ThinkSystem servers. The controller connects to available 10 GbE and 1 Gigabit Ethernet LAN-on-motherboard (LOM) adapter cards and onboard connectors to provide a comprehensive 1 GbE / 10 GbE networking solution for ThinkSystem customers.
ThinkSystem servers support either 10 Gb Ethernet copper or optical connections, or Gigabit Ethernet connections depending on the server model.

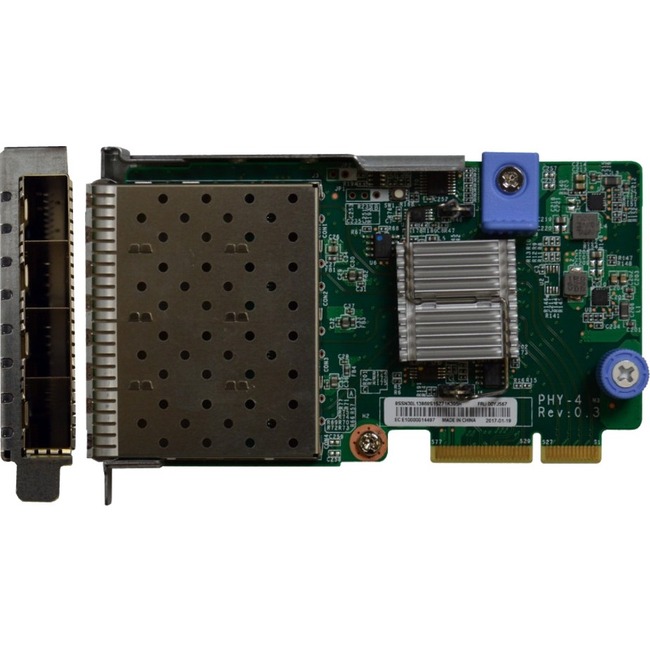

The following figure shows the ThinkSystem 10Gb 4-port SFP+ LOM adapter which provides four SFP+ cages for optical or direct-attach copper (DAC) connectivity.
Did you know?
The Intel Ethernet Connection X722 shares the same core and drivers as the Intel X710 adapters making driver management easier of existing customers.
ThinkSystem LOM adapters are cost-effective adapters that take advantage of the X722 controller embedded in Intel Xeon Processor Scalable Family chipset and offer the flexibility advantages of a PCIe adapter while supporting integrated networking features, such as Wake-on-LAN and direct connectivity to the XClarity Controller management processor for NC-SI-compliant systems management.
Product Type: 10Gigabit Ethernet Card
Interfaces/Ports
Host Interface: PCI Express
Total Number of Ports: 4
I/O Expansions
Expansion Slot Type: SFP+
Media & Performance
Media Type Supported: Optical Fiber
Network & Communication
Network Technology: 10GBase-X
Miscellaneous
Device Supported: Server
Environmentally Friendly: Yes
Environmental Certification:
- RoHS
- China RoHS
Country of Origin: China
