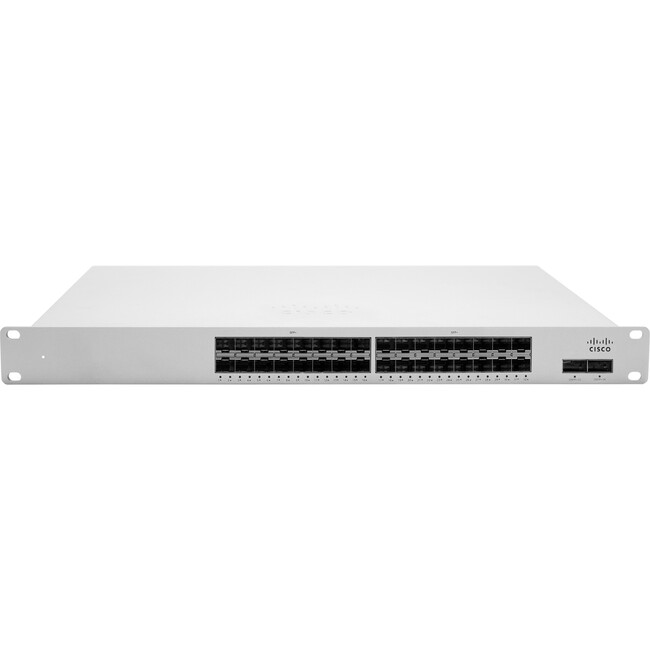

Meraki Cloud-Managed 32 port 10GbE Aggregation Switch with 40GbE Uplinks/Stacking

The Cisco Meraki MS400 Series brings powerful cloud-managed switching to the aggregation layer. This range of 1 and 10Gbps fiber aggregation switches adopts the benefits of the cloud: simplified management, reduced complexity, network wide visibility and control, and lower cost for campus deployments.

EXPANDING CLOUD MANAGEMENT TO THE CAMPUS

Cisco Meraki aggregation switches extend Meraki’s cloud management to campus deployments. Just like our access switches, these aggregation switches are built from the ground up to be easy to manage without compromising any of the power and flexibility traditionally found in enterprise-class switches.

Meraki switches are managed through an elegant, intuitive cloud interface, rather than a cryptic command line. To bring up a Meraki switch, just plug it in; there’s no need for complicated configuration files – or pre-staging.

Product Type: Ethernet Switch
Interfaces/Ports
Uplink Port: Yes
Modular: Yes
Stack Port: Yes
Port/Expansion Slot Details:

• 32 x 10 Gigabit Ethernet Expansion Slot
• 2 x 40 Gigabit Ethernet Expansion Slot

Media & Performance
Media Type Supported:

• Optical Fiber
• Twisted Pair

Ethernet Technology:

• 40 Gigabit Ethernet
• 10 Gigabit Ethernet

Network Technology:

• 40GBase-X
• 10GBase-X

I/O Expansions
Number of Total Expansion Slots: 34
Expansion Slot Type:

• SFP+
• QSFP+

Shared SFP Slot: No
Number of SFP+ Slots: 32
Network & Communication
Layer Supported: 3
Management & Protocols
Manageable: Yes
Power Description
Power Source: Power Supply
Physical Characteristics
Compatible Rack Unit: 1U
Form Factor: Rack-mountable
Height: 1.8″
Width: 19.2″
Depth: 19.1″
Weight (Approximate): 14 lb
Miscellaneous
Package Contents:

• Cloud-Managed 32 port 10GbE Aggregation Switch with 40GbE Uplinks/Stacking
• Mounting Hardware

Environmentally Friendly: Yes
Environmental Certification: RoHS
Country of Origin: Taiwan
Warranty
Limited Warranty: Lifetime
