Manufacturer: Cisco Systems, Inc
Manufacturer Part Number: MS350-24X-HW
Manufacturer Website Address: http://www.cisco.com
Brand Name: Meraki
Product Series: MS350
Product Model: MS350-24X-HW

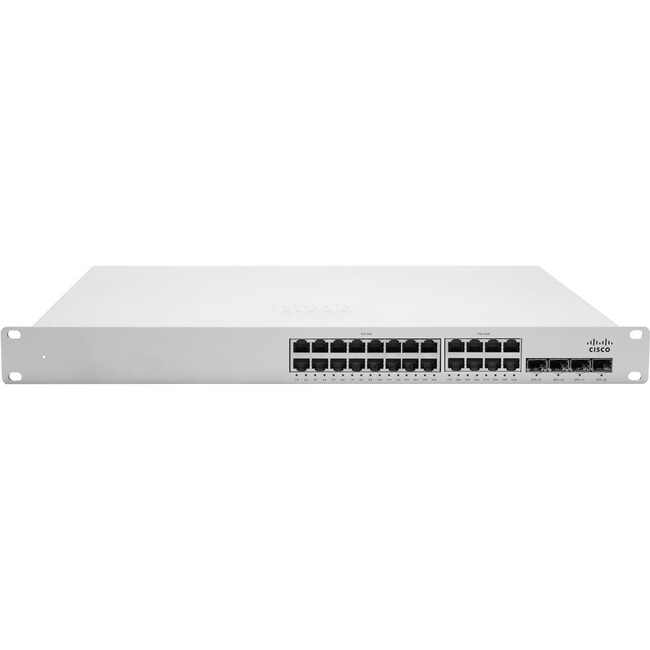

Product Name: Cloud-Managed L3 24 Port Multigigabit 740W UPoE Switch
Marketing Information: The Cisco Meraki MS brings the benefits of the cloud to networks of all sizes: simplified management, reduced complexity, network wide visibility and control, with lower operational cost for campus and branch deployments. Cisco Meraki access switching is available in both Layer 2 and powerful Layer 3 models. Mission-critical features – like deep, Layer 7 application visibility, network topology, virtual stacking, QoS for business critical applications, 802.1X access control, and more – are present in all models.
The MS350 is the flagship Meraki layer 3 stackable access switch, with high-speed connectivity including multigigabit, high availability, PoE+ and UPoE, optional redundant power supplies and fans. MS350 switches physically stack up to 8 units, with 160Gbps of stack bandwidth.
The MS220 family provides layer 2 access switching and is ideal for deploying to branch locations. This family also supports an optional, rack-mountable remote PSU
A FRESH APPROACH
Meraki switches are built from the ground up to be easy to manage without compromising any of the power and flexibility traditionally found in enterprise- class switches.
Cisco Meraki switches are managed through an elegant, intuitive cloud interface, rather than a cryptic command line. To bring up a Meraki switch, just plug it in; there’s no need for complicated configuration files, or even direct physical access to the switch.
Meraki’s centralized management gives administrators deep visibility into the network and how it’s used. See which switches are near capacity across hundreds of sites. Find all configuration changes made by a certain person with instant search.
Product Type: Layer 3 Switch
Interfaces/Ports
Total Number of Network Ports: 24
Uplink Port: Yes
Modular: Yes
Stack Port: Yes
Port/Expansion Slot Details:
- 24 x Gigabit Ethernet Network
- 4 x 10 Gigabit Ethernet Expansion Slot
Media & Performance
Media Type Supported:
- Twisted Pair
- Optical Fiber
Ethernet Technology:
- Gigabit Ethernet
- 10 Gigabit Ethernet
Network Technology:
- 10/100/1000Base-T
- 10GBase-X
I/O Expansions
Number of Total Expansion Slots: 4
Expansion Slot Type: SFP+
Shared SFP Slot: No
Number of SFP+ Slots: 4
Network & Communication
Layer Supported: 3
Management & Protocols
Manageable: Yes
Power Description
Power Source: Power Supply
Redundant Power Supply Supported: Yes
Physical Characteristics
Form Factor:
- Rack-mountable
- Desktop
Height: 1.7″
Width: 20.3″
Depth: 19.1″
Weight (Approximate): 14.48 lb
Miscellaneous
Package Contents:
- Cloud-Managed L3 24 Port Multigigabit 740W UPoE Switch
- Rack-Mount Hardware
- Desktop Feet
Environmentally Friendly: Yes
Environmental Certification: RoHS
Country of Origin: Taiwan
Warranty
Limited Warranty: Lifetime
