Manufacturer: Cisco Systems, Inc
Manufacturer Part Number: MR32-HW
Manufacturer Website Address: http://www.cisco.com
Brand Name: Cisco
Product Series: MR
Product Model: MR32

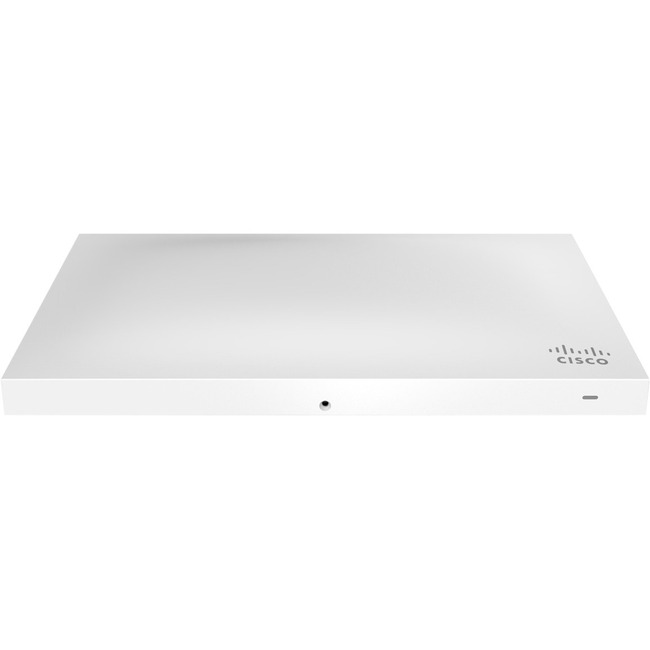

Product Name: MR32 Cloud Managed 802.11ac AP
Marketing Information: High performance cloud-managed 802.11ac wireless
The Cisco Meraki MR32 is a three-radio, cloud-managed 2×2 MIMO 802.11ac access point. Designed for general purpose next-generation deployments in offices, schools, hospitals and hotels, the MR32 provides performance, security, and manageability.
The MR32 provides a maximum 1.2 Gbps data rate with concurrent 802.11ac and 802.11n 2×2:2 MIMO radios, and security and spectrum visibility via a third radio dedicated to 24×7 WIDS/WIPS and automated RF optimization. An integrated Bluetooth low energy (BLE) radio delivers Beacon functionality and BLE device scanning.
The combination of cloud management, 802.11ac, full-time RF environment scanning, and an integrated Bluetooth technology delivers the high throughput, reliability, and flexibility required by the most demanding business applications like voice and high-definition streaming video, both today and tomorrow.
MR32 and Meraki Cloud Management: A Powerful Combo
The MR32 is managed through the Meraki cloud, with an intuitive browser-based interface that enables rapid deployment without training or certifications. Since the MR32 is self-configuring and managed over the web, it can even be deployed at a remote location without on-site IT staff.
The MR32 is monitored 24×7 via the Meraki cloud, which delivers real-time alerts if the network encounters problems. Remote diagnostics tools enable real-time troubleshooting over the web, meaning multi-site, distributed networks can be managed remotely.
The MR32’s firmware is always kept up to date from the cloud. New features, bug fixes, and enhancements are delivered seamlessly over the web, meaning no manual software updates to download or missing security patches to worry about.
Product Type: Wireless Access Point
Technical Information
Wireless LAN Standard: IEEE 802.11ac
Frequency Band:
- 2.48 GHz
- 5.83 GHz
Number of Internal Antennas: 2
Wireless Transmission Speed: 1.17 Gbit/s
MIMO Technology: Yes
Beamforming Technology: Yes
Interfaces/Ports
Ethernet Technology:
- Ethernet
- Fast Ethernet
- Gigabit Ethernet
Number of Network (RJ-45) Ports: 1
PoE (RJ-45) Port: Yes
VGA: No
HDMI: No
USB: No
Powerline: No
Management Port: No
Physical Characteristics
Form Factor:
- Desktop
- Wall Mountable
- Rail-mountable
- Ceiling Mountable
Height: 1.5″
Width: 10″
Depth: 6.1″
Weight (Approximate): 1.56 lb
Miscellaneous
Package Contents:
- MR32 Cloud Managed 802.11ac AP
- Mounting Hardware
- 2 x Security Screw Options
Environmentally Friendly: Yes
Environmental Certification: RoHS
Warranty
Limited Warranty: Lifetime
