Manufacturer: Cisco Systems, Inc
Manufacturer Part Number: MR52-HW
Manufacturer Website Address: http://www.cisco.com
Brand Name: Meraki
Product Model: MR52

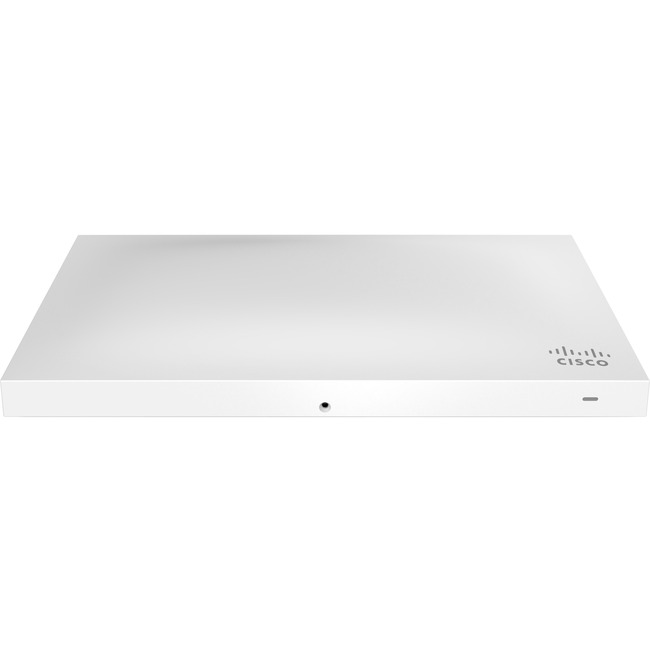

Product Name: MR52 Cloud Managed 802.11ac AP
Marketing Information: High performance 802.11ac Wave 2 wireless
The Cisco Meraki MR52 is a cloud-managed 4×4:4 802.11ac Wave 2 access point with 160 MHz channels and MU-MIMO support. Designed for next-generation deployments in offices, schools, hospitals, shops, and hotels, the MR52 offers high performance, enterprise-grade security, and simple management. The MR52 provides a maximum of 2.5 Gbps* aggregate frame rate with concurrent 2.4 GHz and 5 GHz radios. A dedicated third radio provides real-time WIDS/WIPS with automated RF optimization, and a fourth integrated radio delivers Bluetooth Low Energy (BLE) scanning and Beaconing. With the combination of cloud management, high perfomance hardware, multiple radios, and advanced software features, the MR52 makes an oustanding platform for the most demanding of uses – including high-density deployments and bandwidh or performanceintensive applications like voice and high-definition video.
MR52 and Meraki cloud management: A powerful combo
Management of the MR52 is through the Meraki cloud, with an intuitive browser-based interface that enables rapid deployment without time-consuming training or costly certifications. Since the MR52 is self-configuring and managed over the web, it can be deployed at a remote location in a matter of minutes, even without on-site IT staff. 24×7 monitoring via the Meraki cloud delivers real-time alerts if the network encounters problems. Remote diagnostic tools enable imediate troubleshooting over the web so that distributed networks can be managed with a minimum of hassle. The MR52’s firmware is automatically kept up to date via the cloud. New features, bug fixes, and enhancements are delivered seamlessly over the web. This means no manual software updates to download or missing security patches to worry about.
Product Type: Wireless Access Point
Technical Information
Wireless LAN Standard: IEEE 802.11ac
Frequency Band:
- 5 GHz
- 2.40 GHz
Wireless Transmission Speed: 2.50 Gbit/s
MIMO Technology: Yes
Beamforming Technology: Yes
Interfaces/Ports
Ethernet Technology:
- Ethernet
- Fast Ethernet
- Gigabit Ethernet
Number of Network (RJ-45) Ports: 2
PoE PD Port: Yes
Physical Characteristics
Form Factor:
- Ceiling Mountable
- Wall Mountable
- Desktop
Height: 1.6″
Width: 10.6″
Depth: 6.4″
Weight (Approximate): 1.81 lb
Miscellaneous
Package Contents:
- MR52 Cloud Managed 802.11ac AP
- 2 x Security Screw Options
- Lifetime Hardware Warranty with Advanced Replacement
- All Standard Mounting Hardware
Country of Origin: Taiwan
Warranty
Limited Warranty: Lifetime
