Manufacturer: Cisco Systems, Inc
Manufacturer Part Number: MR53E-HW
Manufacturer Website Address: http://www.cisco.com
Brand Name: Meraki
Product Model: MR53E
Product Name: MR53E Cloud Managed 802.11ac Wave 2 AP
Marketing Information: High performance 802.11ac Wave 2 wireless

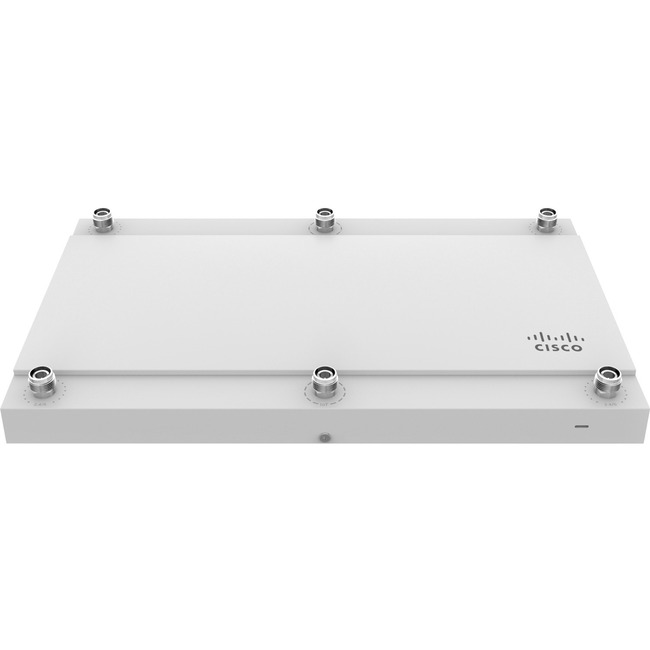

The Cisco Meraki MR53E is a cloud-managed 4×4:4 802.11ac Wave 2 access point with 160 MHz channels and MU-MIMO support. Designed for demanding next-generation deployments in busy offices, schools, hospitals, stadiums, factories, warehouses, and other venues, the MR53E offers high performance, enterprise-grade security, and simple management. The MR53E provides a maximum of 2.5 Gbps aggregate frame rate with concurrent 2.4 GHz and 5 GHz radios. A dedicated third radio provides real-time WIDS/WIPS with automated RF optimization, and a fourth integrated radio delivers Bluetooth Low Energy (BLE) scanning and Beaconing.
The MR53E supports a variety of smart, auto-detectable external antenna that can deliver both focused, targeted coverage in challenging RF scenarios as well as broader coverage in a variety of environments, including those with very high ceilings. These antenna include panel and panel downtilt omnidirectionals, wide patch, and narrow patch options.
With the combination of cloud management, best-in-class hardware, multiple radios, and advanced software features that leverage the intelligence and power of the Meraki cloud, the MR53E makes an outstanding platform for the most challenging use cases – including high-density deployments and bandwidth or performance-critical applications like voice and high-definition video.
MR53E and Meraki cloud management: a powerful combination
Management of the MR53E is handled through the Meraki dashboard, an intuitive browser-based interface that enables rapid deployment across multiple sites without the need for timeconsuming training or costly certifications.
Since the MR53E is self-configuring and managed over the web, it can be deployed at a remote location in a matter of minutes, even without on-site IT staff. 24×7 monitoring via the Meraki cloud delivers real-time alerts if the network encounters problems. Remote diagnostic tools enable immediate troubleshooting so that distributed networks can be managed with a minimum of hassle.
The MR53E’s firmware is automatically kept up to date via the cloud. New features, bug fixes, and enhancements are delivered seamlessly over the web. This means no manual software updates to download or missing security patches to worry about.
Features
Dual-radio aggregate frame rate of up to 2.5 Gbps
A 5 GHz 4×4:4 radio supporting 160 MHz channel widths and a 2.4 GHz 4×4:4 radio supporting 40 MHz channel widths offer a combined dual-radio aggregate frame rate of 2.5 Gbps, with up to 1,733 Mbps in the 5 GHz band thanks to 802.11ac Wave 2 and 800 Mbps in the 2.4 GHz band. Technologies like transmit beamforming and enhanced receive sensitivity allow the MR53E to support a higher client density than typical enterprise-class access points, resulting in fewer APs for a given deployment.
Multi User Multiple Input Multiple Output (MU-MIMO)
The MR42E’s sophisticated, dedicated dual-band third radio scans the environment continuously, characterizing RF interference and containing wireless threats like rogue access points. No more need to choose between wireless security, advanced RF analysis, and serving client data: a dedicated third radio means that all three occur in real-time, without any impact to client traffic or AP throughput.
Product Type: Wireless Access Point
Technical Information
Wireless LAN Standard: IEEE 802.11ac
Frequency Band:
- 5 GHz
- 2.40 GHz
Wireless Transmission Speed: 2.50 Gbit/s
MIMO Technology: Yes
Beamforming Technology: Yes
Interfaces/Ports
Ethernet Technology:
- Gigabit Ethernet
- 2.5 Gigabit Ethernet
Number of Network (RJ-45) Ports: 2
PoE PD Port: Yes
VGA: No
HDMI: No
Powerline: No
Physical Characteristics
Form Factor:
- Ceiling Mountable
- Wall Mountable
- Desktop
- Rail-mountable
- Flush Mount
Height: 1.1″
Width: 6.3″
Depth: 10.6″
Weight (Approximate): 2.58 lb
Miscellaneous
Package Contents:
- MR53E Cloud Managed 802.11ac Wave 2 AP
- Mounting Hardware
Environmentally Friendly: Yes
Environmental Certification: RoHS
Country of Origin: Taiwan
Warranty
Limited Warranty: Lifetime
