Manufacturer: Cisco Systems, Inc
Manufacturer Part Number: MS120-8LP-HW
Manufacturer Website Address: http://www.cisco.com
Brand Name: Meraki
Product Series: MS120
Product Model: MS120-8LP

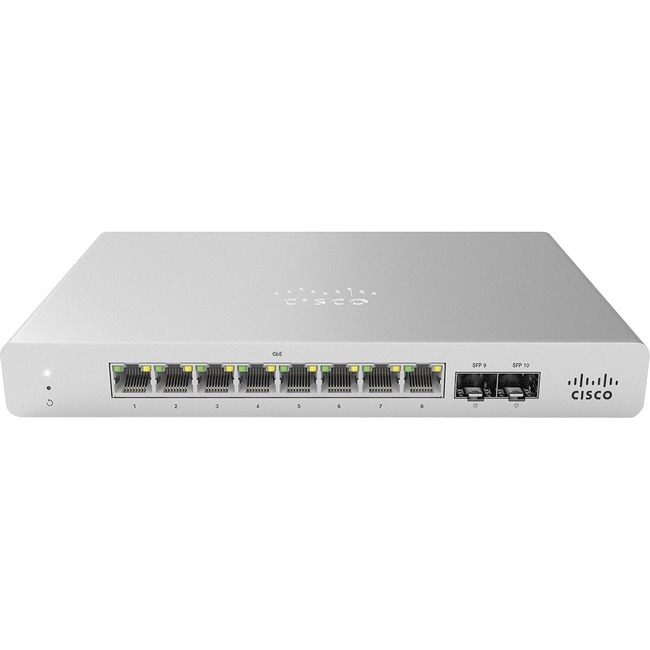

Product Name: MS120-8LP 1G L2 Cloud Managed 8x GigE 64W PoE Switch
Marketing Information:
CLOUD-MANAGED COMPACT ACCESS SWITCHES
Cisco Meraki MS120-8 compact switches provide Layer 2 access switching in a fanless, compact form factor. All models include 1GbE SFP ports for fiber uplink, integrated mounting brackets, and a Kensington security slot, making them ideal for rapid and secure deployment to branch location.
Cisco Meraki switches are built from the ground-up to be easily managed without compromising any of the power and flexibility traditionally found in enterprise-class switches.
Meraki switches are managed through an elegant, intuitive cloud interface, rather than through command line. To set up a Meraki switch, just plug it in; there’s no need for complicated configuration files or even direct physical access to the switch.
Meraki’s centralized management gives administrators deep visibility into the network and how it’s used. For example, you can quickly see which switches are near capacity across hundreds of sites, or find all configuration changes made by a member of the team with instant search.
Product Type: Ethernet Switch
Interfaces/Ports
Total Number of Network Ports: 8
Uplink Port: Yes
Modular: Yes
Stack Port: Yes
Port/Expansion Slot Details:
- 8 x Gigabit Ethernet Network
- 2 x Gigabit Ethernet Uplink
Media & Performance
Media Type Supported:
- Twisted Pair
- Optical Fiber
Ethernet Technology: Gigabit Ethernet
Network Technology:
- 10/100/1000Base-T
- 1000Base-X
I/O Expansions
Number of Total Expansion Slots: 2
Expansion Slot Type: SFP
Shared SFP Slot: No
Number of SFP Slots: 2
Network & Communication
Layer Supported: 2
Management & Protocols
Manageable: Yes
Power Description
Power Source: Power Supply
Redundant Power Supply Supported: No
Physical Characteristics
Form Factor:
- Wall Mountable
- Desktop
Height: 1.1″
Width: 8.7″
Depth: 5.9″
Weight (Approximate): 2.76 lb
Miscellaneous
Package Contents:
- MS120-8LP 1G L2 Cloud Managed 8x GigE 64W PoE Switch
- 1 x Mounting Screw Kit and Anchor
- 1 x External Power Supply
Environmentally Friendly: Yes
Environmental Certification: RoHS
Country of Origin: China
Warranty
Limited Warranty: Lifetime
