Manufacturer: Cisco Systems, Inc
Manufacturer Part Number: MS22P-HW
Manufacturer Website Address: http://www.cisco.com
Brand Name: Meraki
Product Model: MS22P

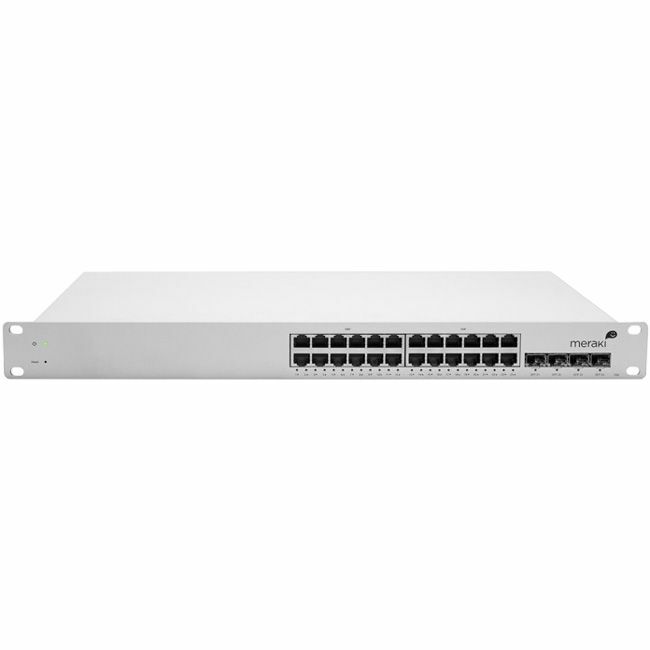

Product Name: MS22P Ethernet Switch
Marketing Information:
The Meraki MS line of cloud-managed access switches bring the benefits of cloud computing, including management simplicity, reduced complexity, and lower cost, to branch and campus networks.
A Fresh Approach
Meraki switches are built from the ground up to be easy to manage without compromising any of the power and flexibility traditionally found in enterprise-class switches.
For example, Meraki switches are managed through an elegant, efficient cloud interface, rather than a cryptic command line. To bring up a Meraki switch, just plug it in; there’s no need for complicated configuration files.
In addition, Meraki’s centralized management system gives administrators deep visibility into the network. See which switches are near capacity across hundreds of sites. Find all configuration changes made by a certain person with instant search. Locate a switch on a floor plan with one click.
Product Type: Ethernet Switch
Interfaces/Ports
Total Number of Network Ports: 20
Port/Expansion Slot Details:
- 20 x Gigabit Ethernet Network
- 4 x Gigabit Ethernet Expansion Slot
Media & Performance
Ethernet Technology:
- Gigabit Ethernet
- Fast Ethernet
Network Technology: 10/100/1000Base-T
I/O Expansions
Number of Total Expansion Slots: 4
Expansion Slot Type: SFP
Shared SFP Slot: Yes
Number of SFP Slots: 4
Network & Communication
Layer Supported: 2
Management & Protocols
Manageable: Yes
Power Description
PoE (RJ-45) Port: Yes
Power Source: Power Supply
Redundant Power Supply Supported: No
Physical Characteristics
Form Factor:
- Rack-mountable
- Desktop
Height: 1.8″
Width: 17.4″
Depth: 15″
Weight (Approximate): 9 lb
Miscellaneous
Package Contents:
- MS22P Ethernet Switch
- Rack Mount Hardware
- Feet
Environmentally Friendly: Yes
Environmental Certification: RoHS
Warranty
Limited Warranty: Lifetime
