Manufacturer: Cisco Systems, Inc
Manufacturer Part Number: MS250-48FP-HW
Manufacturer Website Address: http://www.cisco.com
Brand Name: Meraki
Product Series: MS
Product Model: MS250-48FP

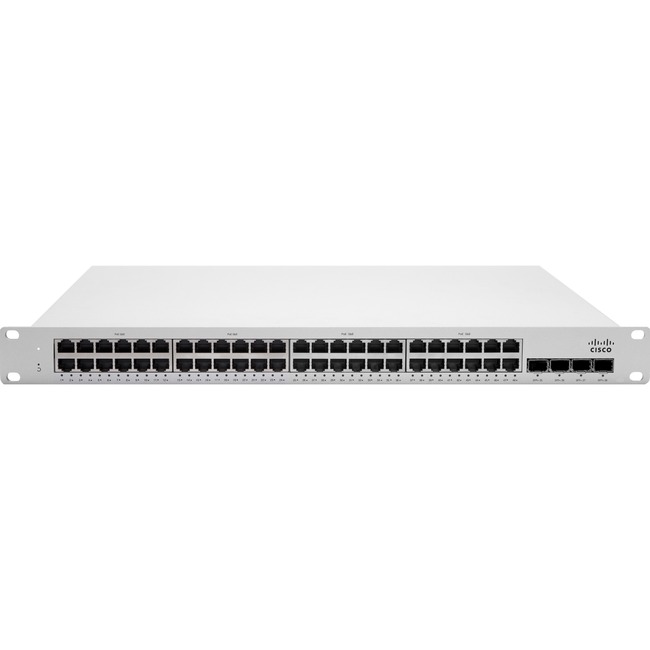

Product Name: MS250-48FP Ethernet Switch
Marketing Information: CLOUD MANAGED STACKABLE ACCESS SWITCHES
The Cisco Meraki MS250 series switches provide reliable access switching ideal for deploying in branches and small campuses. With stacking capabilities and 10G SFP+ uplinks on every model, redundancy and performance are guaranteed. This family also supports redundant, field-replaceable power supplies for mission critical networks.
Cisco Meraki switches are built from the ground up to be easy to manage without compromising any of the power and flexibility traditionally found in enterprise-class switches.
The Meraki MS is managed through an elegant, intuitive cloud interface, rather than a cryptic command line. To bring up a Meraki switch, just plug it in; there’s no need for complicatedconfiguration files, or even direct physical access to the switch.
Meraki’s centralized management gives administrators deep visibility into the network and how it’s used. See which switches are near capacity across hundreds of sites. Find all configuration changes made by a certain person with instant search.
INDUSTRY LEADING CLOUD MANAGEMENT
Cloud management has a number of benefits that make it easier to build networks large and small:
- True zero-touch device provisioning
- Virtual stacking: manage up to thousands of ports from a single pane of glass.
- Application layer visibility with automatic operating system, client, and hostname fingerprinting.
- Powerful Live Tools such as packet capture and cable test to isolate and troubleshoot network issues.
- Alerts upon power loss, downtime, or configuration changes.
- Role-based administration and automatic, scheduled firmware upgrades over the web.
- Regular feature updates and enhancements delivered ondemand from the Meraki cloud.
Product Type: Ethernet Switch
Interfaces/Ports
Total Number of Network Ports: 48
Uplink Port: Yes
Modular: Yes
Stack Port: Yes
Port/Expansion Slot Details:
- 48 x Gigabit Ethernet Network
- 4 x 10 Gigabit Ethernet Uplink
- 2 x Stack
Media & Performance
Media Type Supported:
- Twisted Pair
- Optical Fiber
Ethernet Technology:
- Gigabit Ethernet
- 10 Gigabit Ethernet
Network Technology:
- 10/100/1000Base-T
- 10GBase-X
I/O Expansions
Number of Total Expansion Slots: 6
Expansion Slot Type: SFP+
Shared SFP Slot: No
Number of SFP+ Slots: 4
Network & Communication
Layer Supported: 3
Management & Protocols
Manageable: Yes
Power Description
Power Source: Power Supply
Redundant Power Supply Supported: Yes
Physical Characteristics
Compatible Rack Unit: 1U
Form Factor:
- Rack-mountable
- Desktop
Height: 1.7″
Width: 23.4″
Depth: 19.1″
Weight (Approximate): 12.83 lb
Miscellaneous
Package Contents:
- MS250-48FP Ethernet Switch
- 1 x Power Cord
- 1 x Power Supply
- Mounting Screw Kit
- Rack Mount Hardware
Environmentally Friendly: Yes
Environmental Certification: RoHS
Country of Origin: Taiwan
Warranty
Limited Warranty: Lifetime
